2010 Mazak Slant Turn Nexus 550II / 3000 CNC OIL COUNTRY LATHE with 12.5" BORE

2010 Mazak Slant Turn Nexus 550II / 3000 CNC OIL COUNTRY LATHE with 12.5" BORE

or
Call 859-653-9060

Description

EQUIPPED WITH:

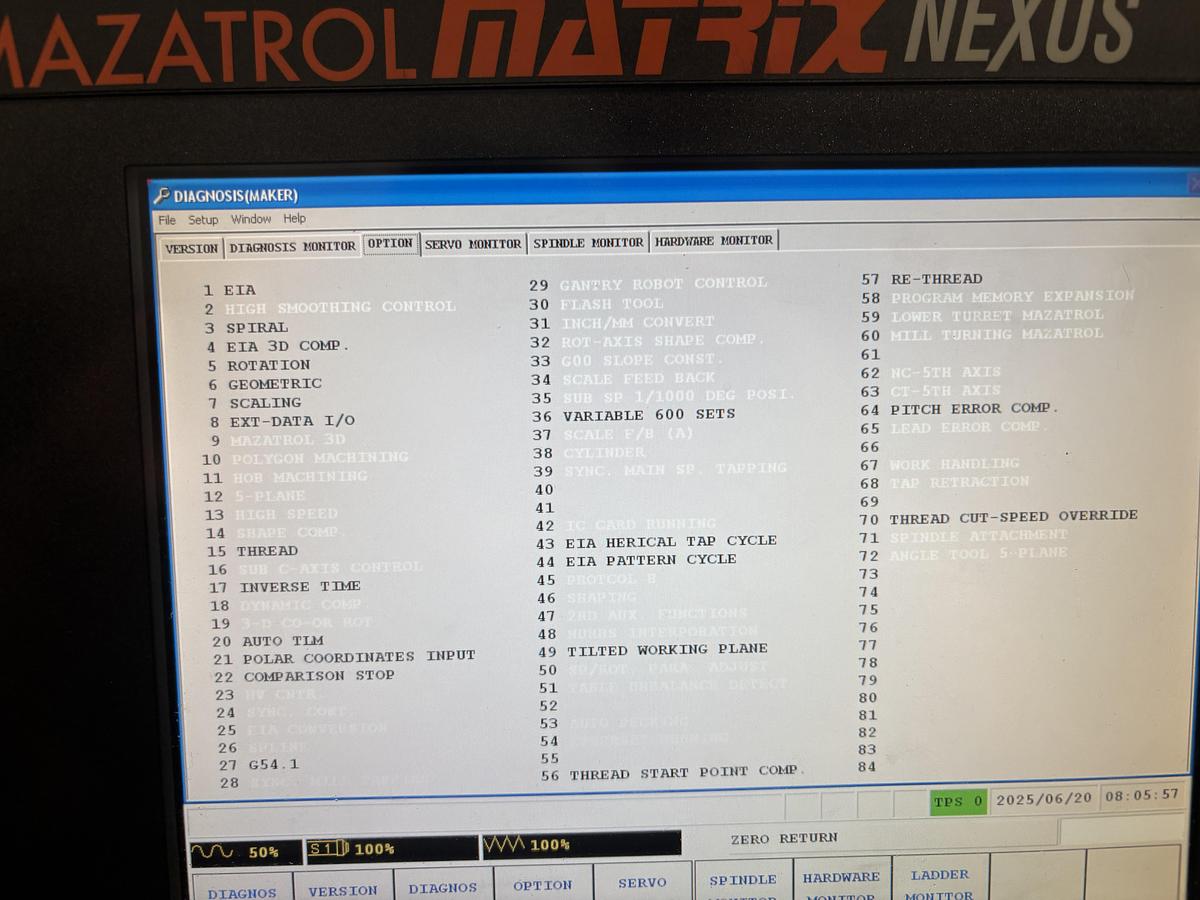

  • MAZATROL MATRIX with EIA

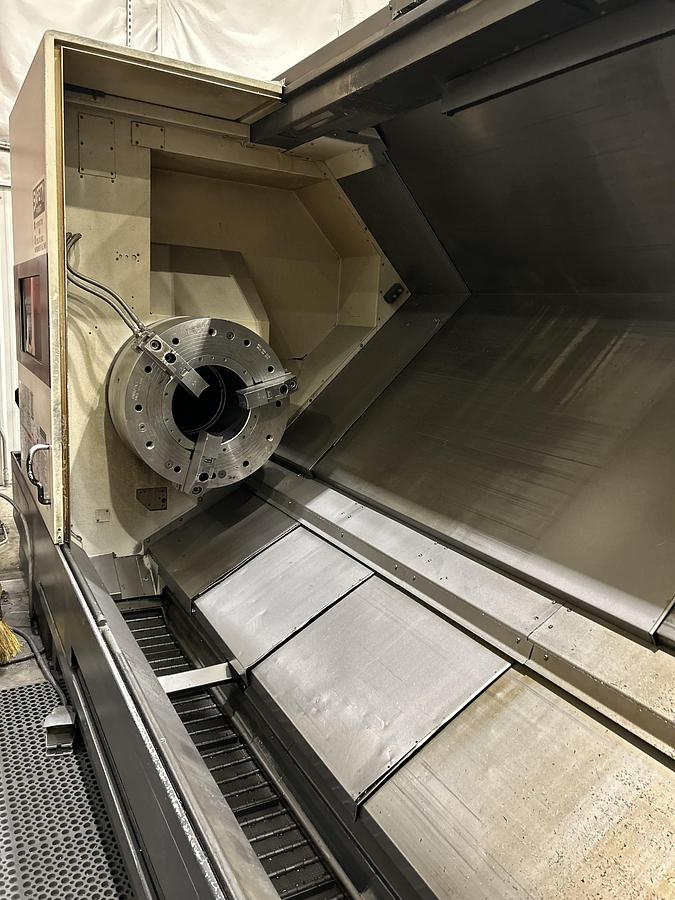

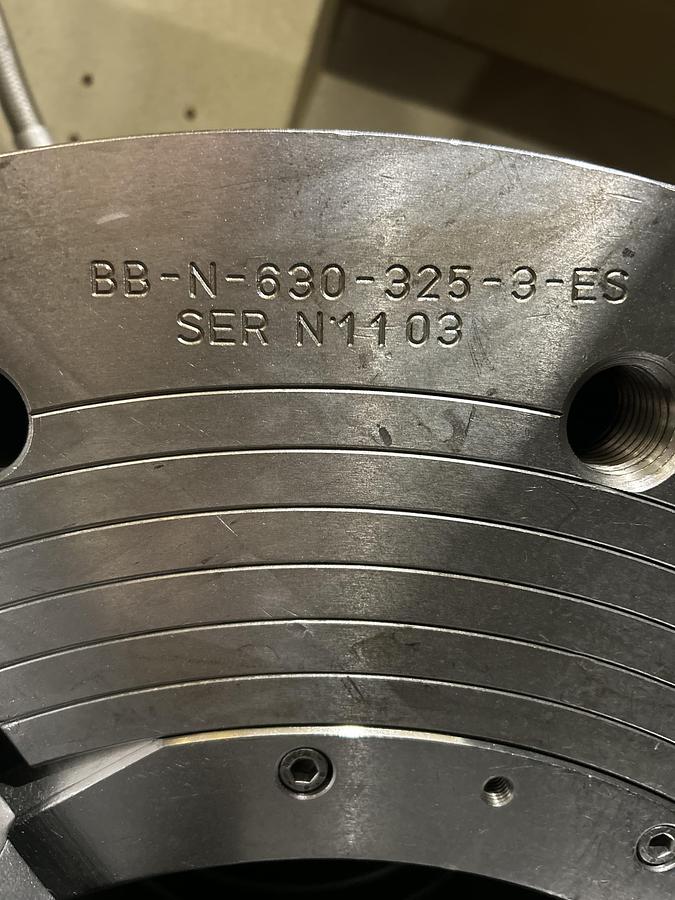

  • 24" EXTENDED STROKE AIR CHUCK W/ 12.5" BORE
  • 12.1 COLOR MONITOR / EIA 3D COM
  • ALL AVAILABLE MANUALS
  • CHIP CONVEYOR
  • HI-PRESSURE COOLANT
  • RE-THREADING
  • TAILSTOCK

Specifications

ManufacturerMazak
ModelSlant Turn Nexus 550II / 3000 CNC OIL COUNTRY LATHE with 12.5" BORE
Year2010
ConditionUsed
Stock NumberXL6202025KT
Maximum swing Over Bed40.94"
Max Machining Dia35.8"
Cutting length123.7"
DISTANCE BETWEEN CENTERS126.75"
X-Axis Travel18.25"
Z-Axis Travel129.875"
Horse Power60/50
Bar capacity12.5"
Spindle Speed750 rpm

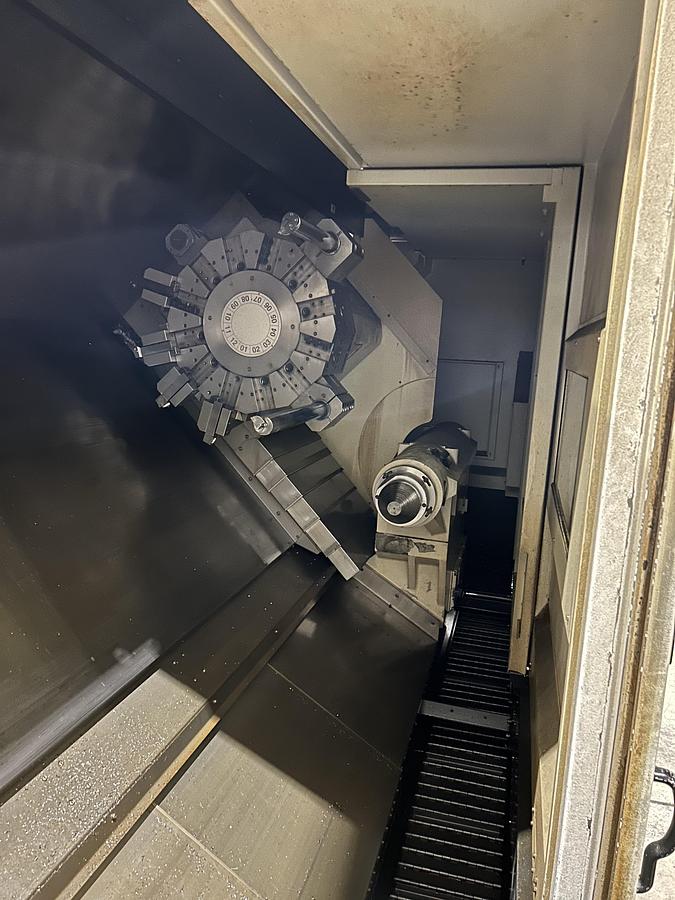

Turret Positions12 Drum
