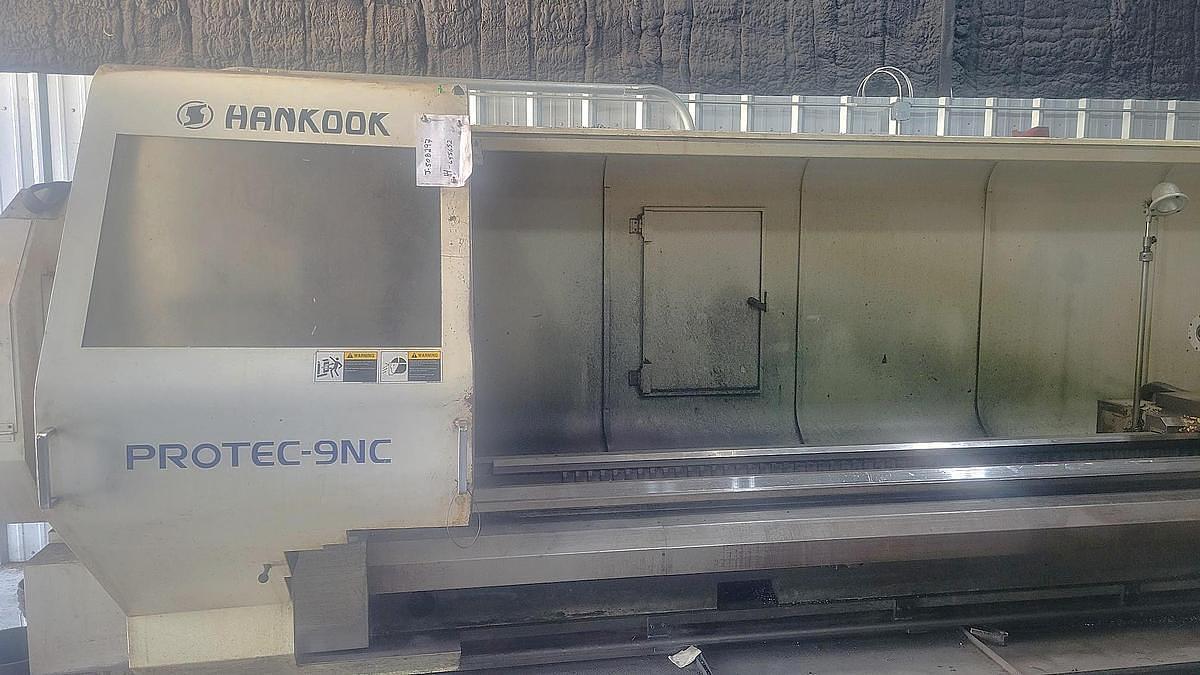

2006 Hankook Protec 9NC/4000 *** ONLY 6,069 Run Time Hours***
2006 Hankook Protec 9NC/4000 *** ONLY 6,069 Run Time Hours***
$129,500 (USD)
Available quantity:1
or
Call 859-653-9060
Description
EQUIPPED WITH:

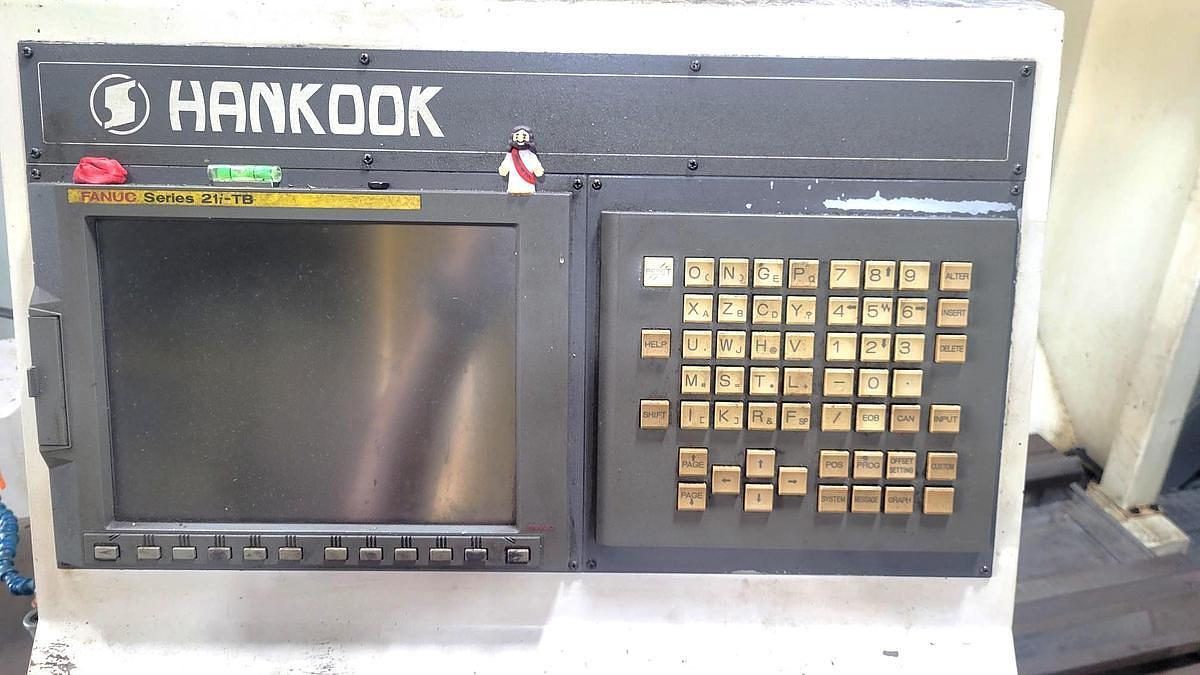

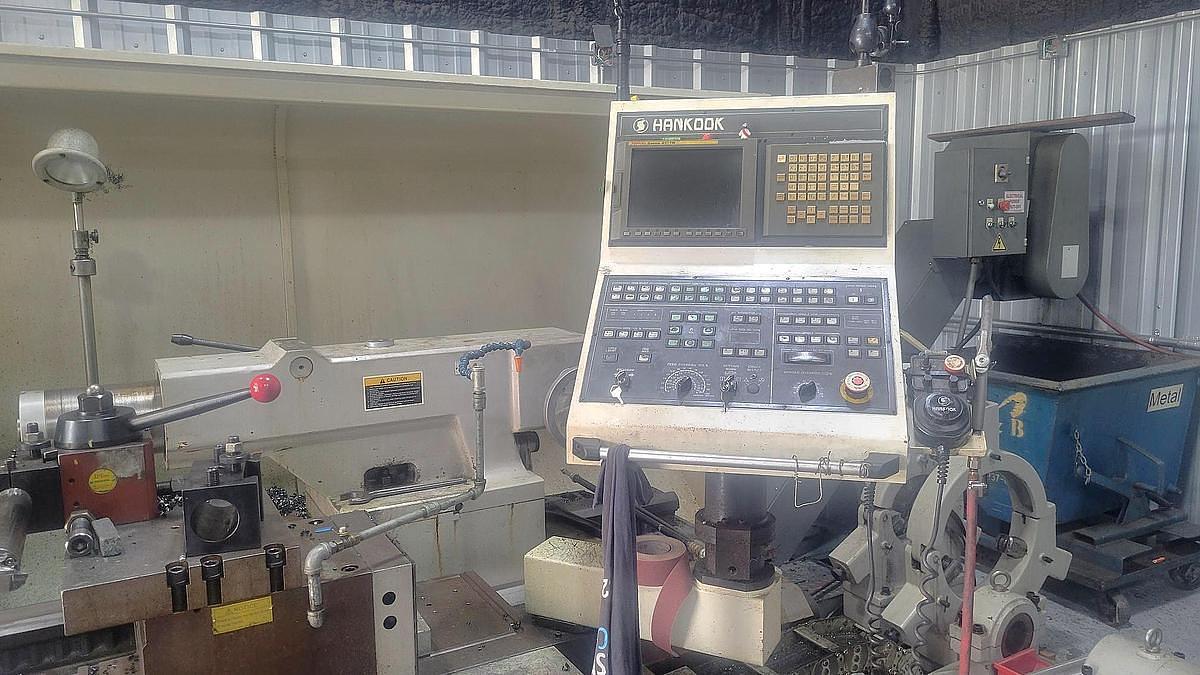

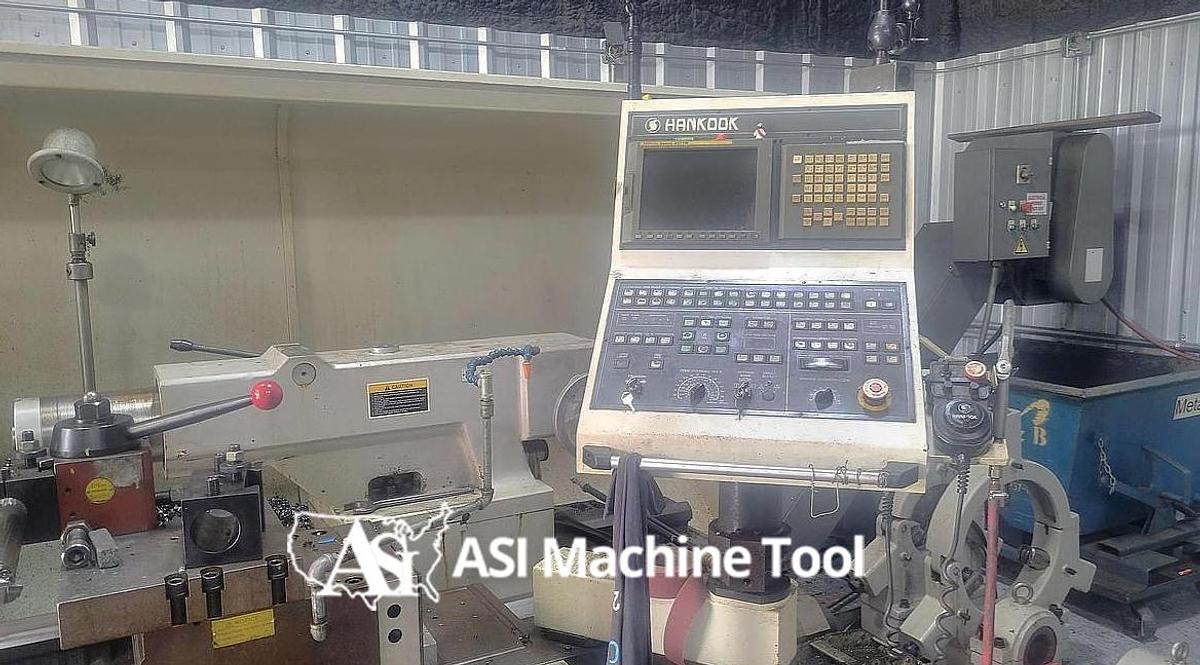

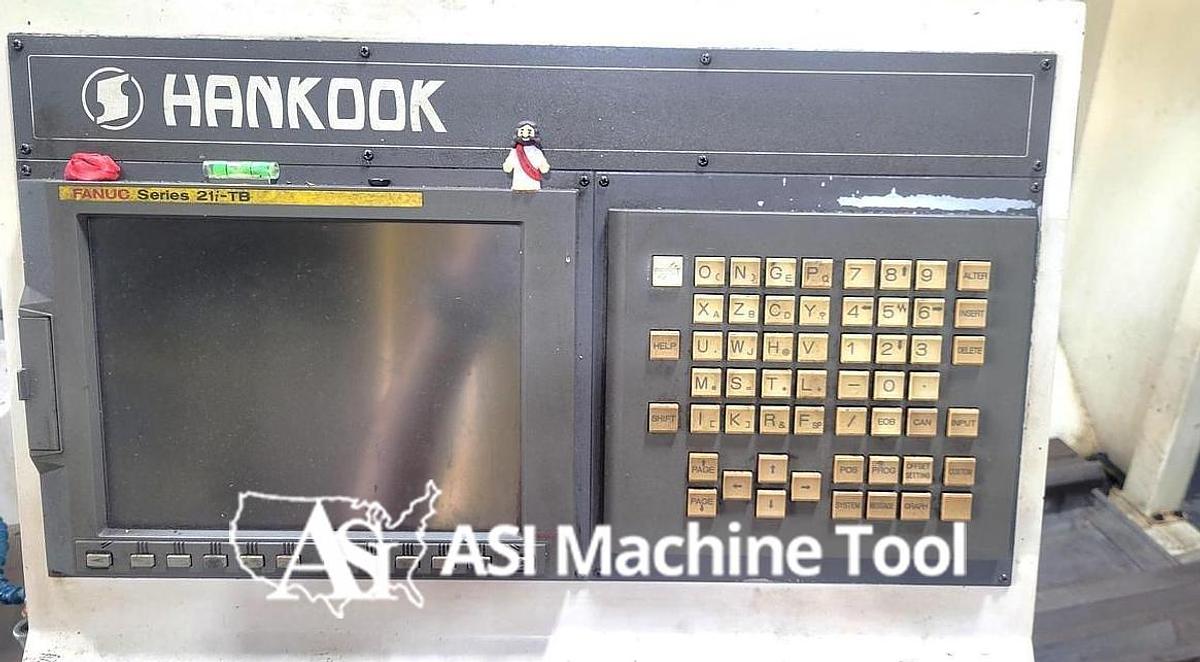

- Fanuc 21i-TB Control
- 10" Spindle Bore/Bar Capacity
- Chip Conveyor

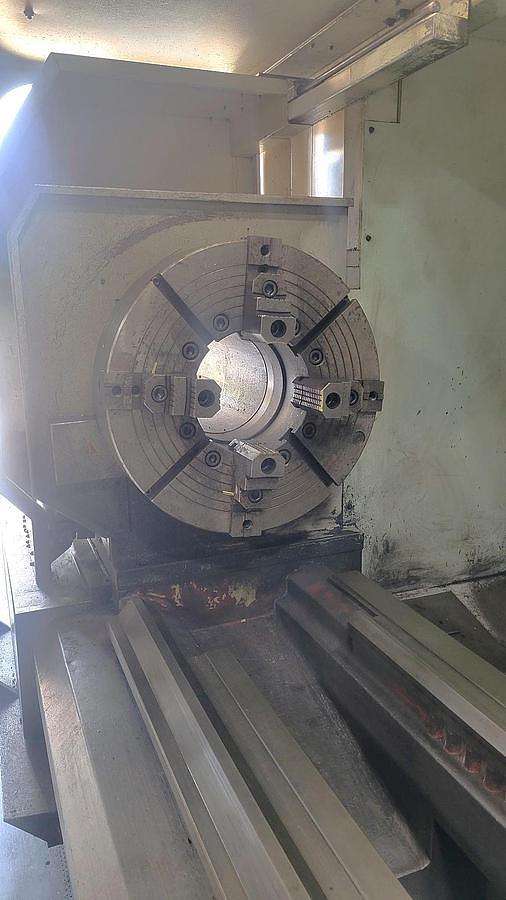

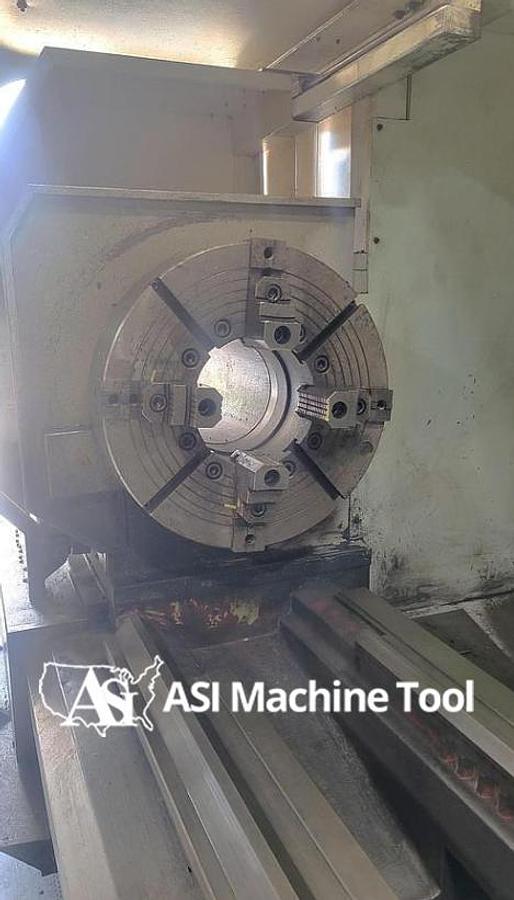

- 25" 4 Jaw Manual Chuck on Front

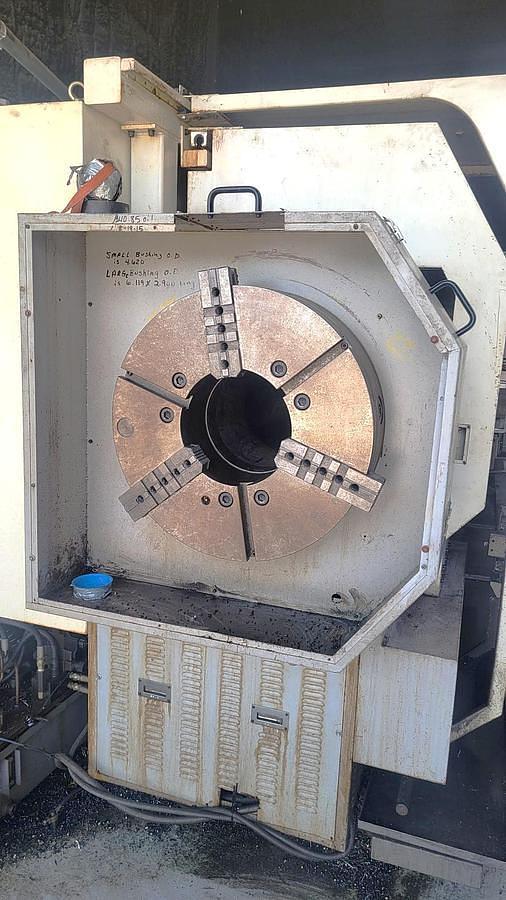

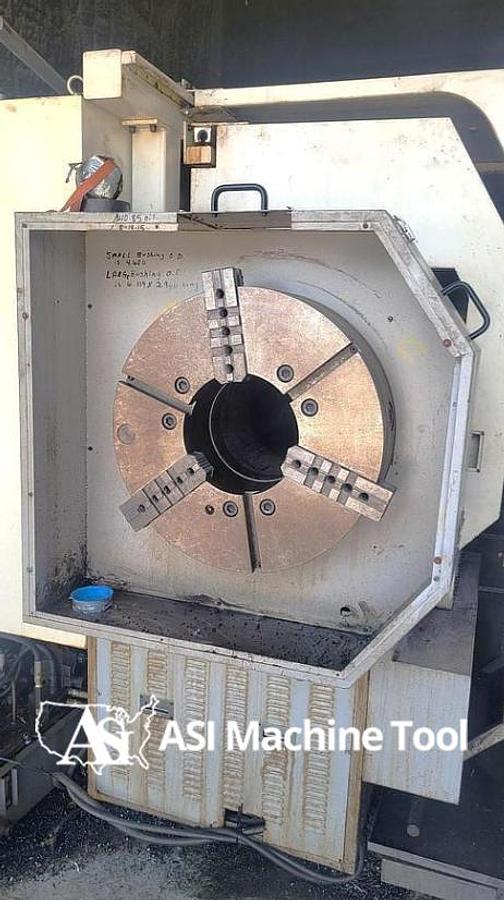

- 25" 3 Jaw Manual Chuck on Rear

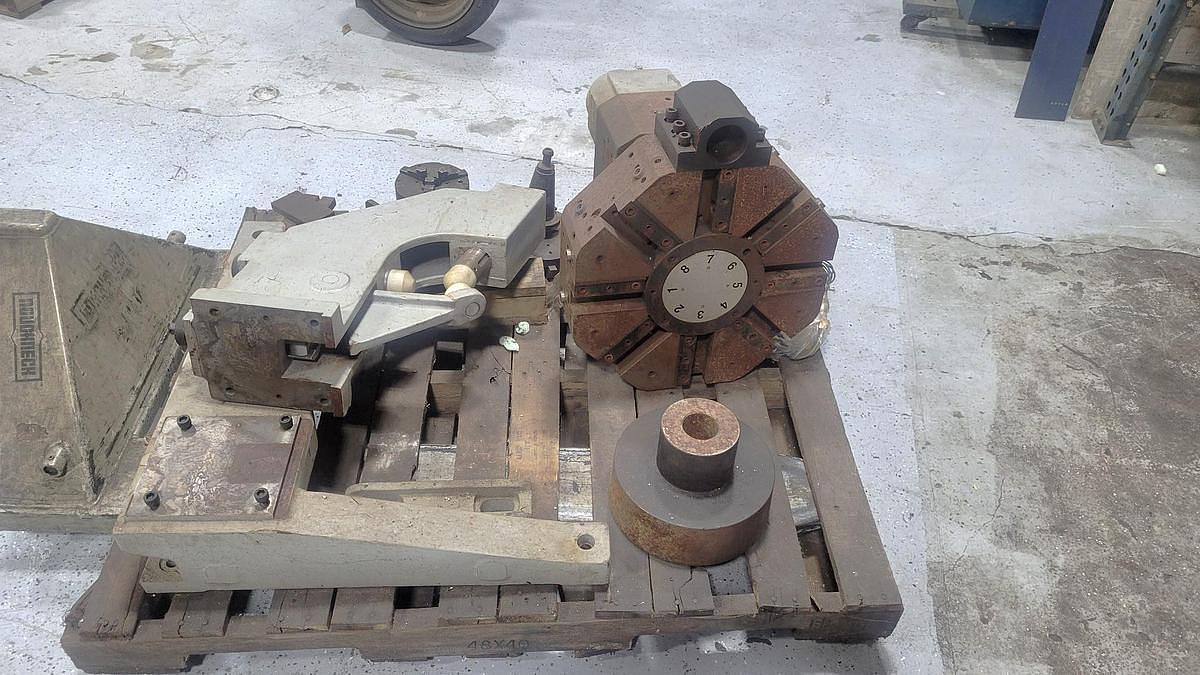

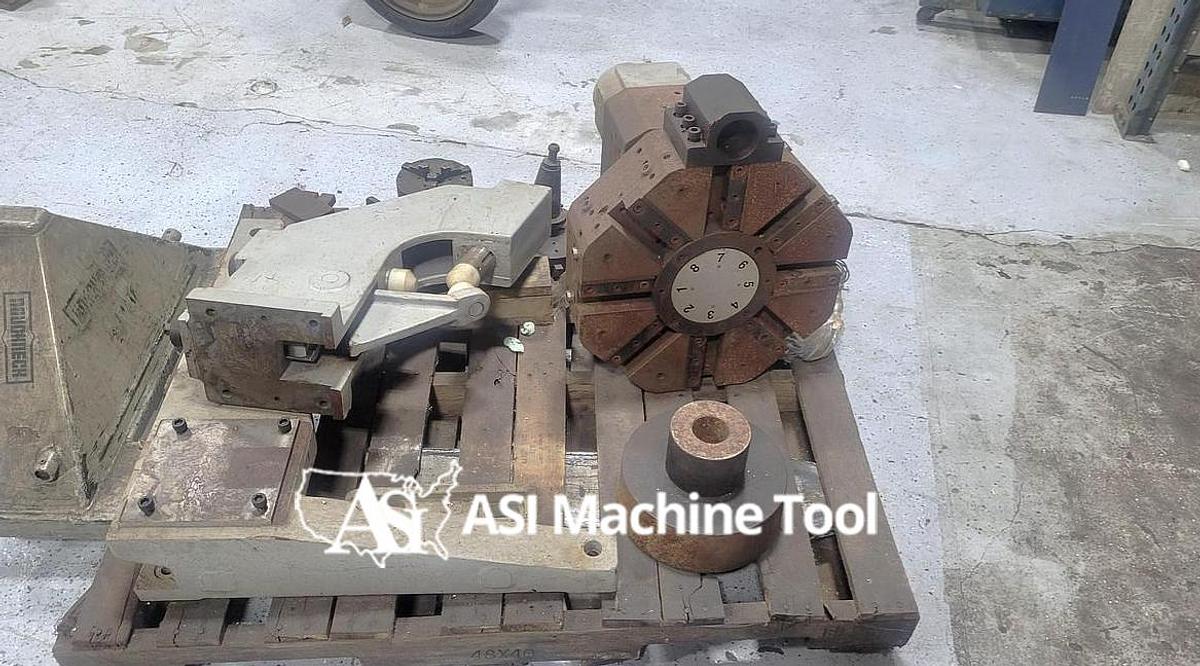

- 8 Station Turret that Mounts on Cross Slide

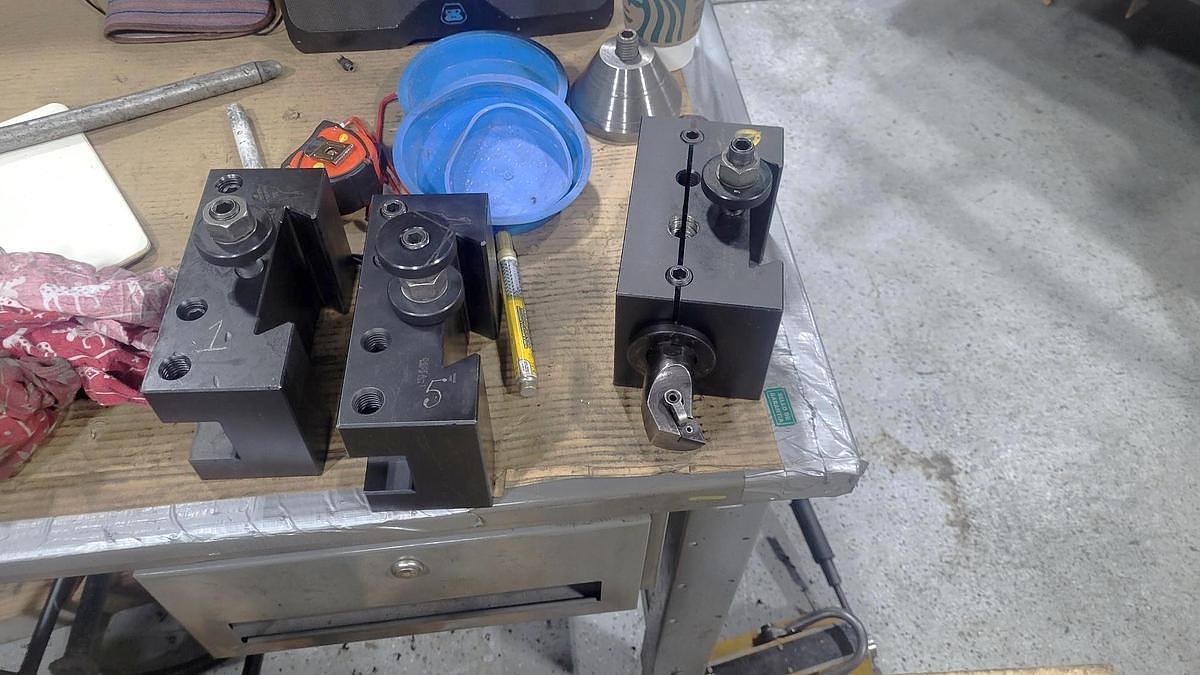

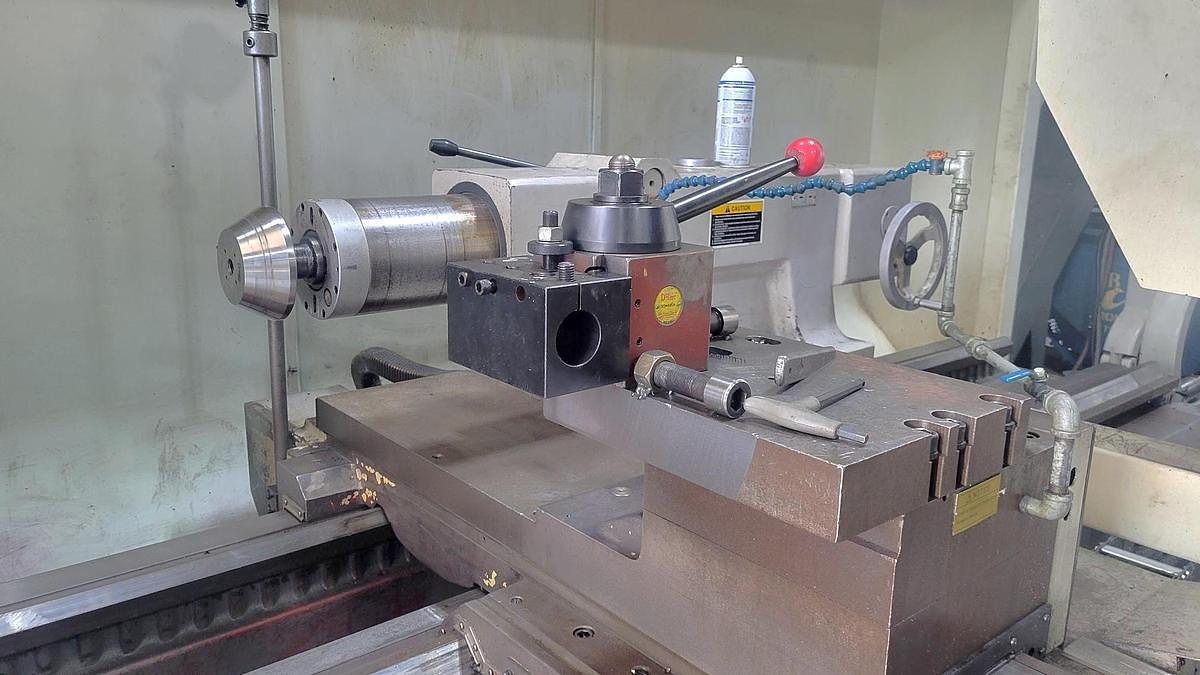

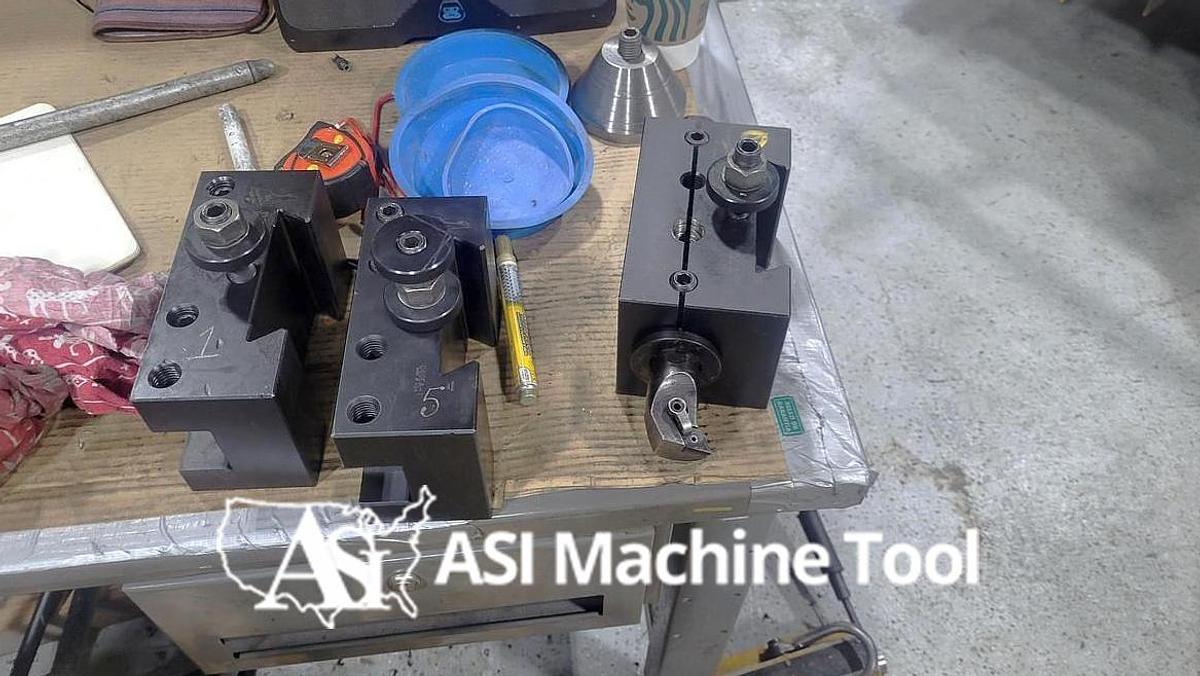

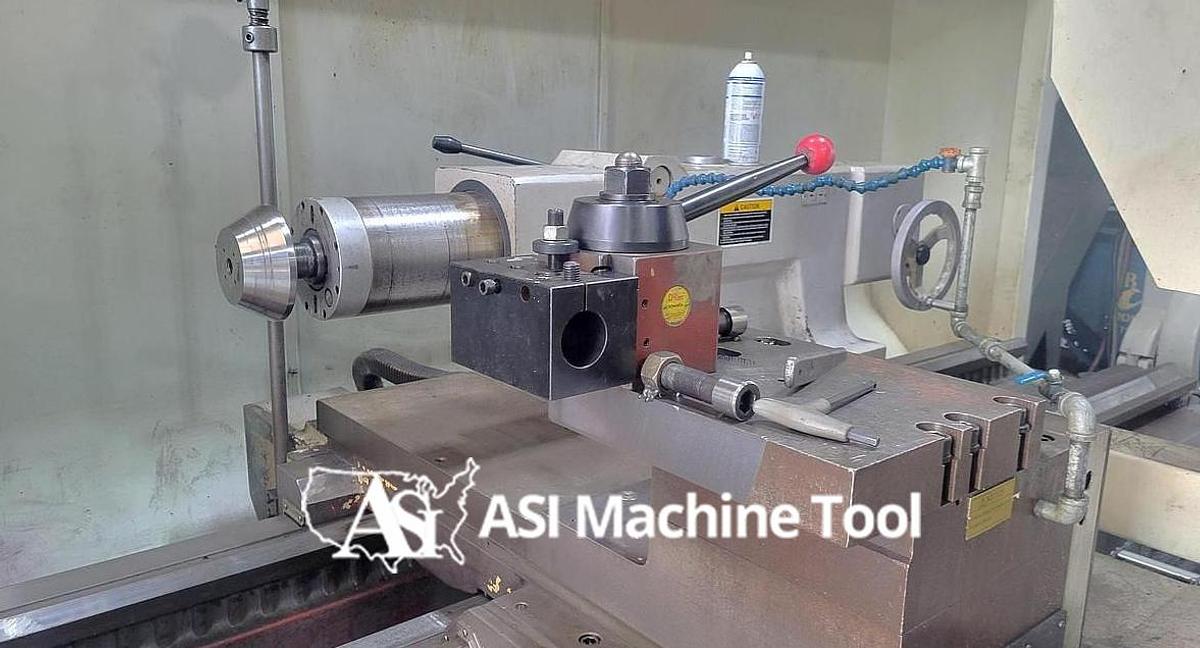

- Dorian Tool Post Mounted on Cross Slide

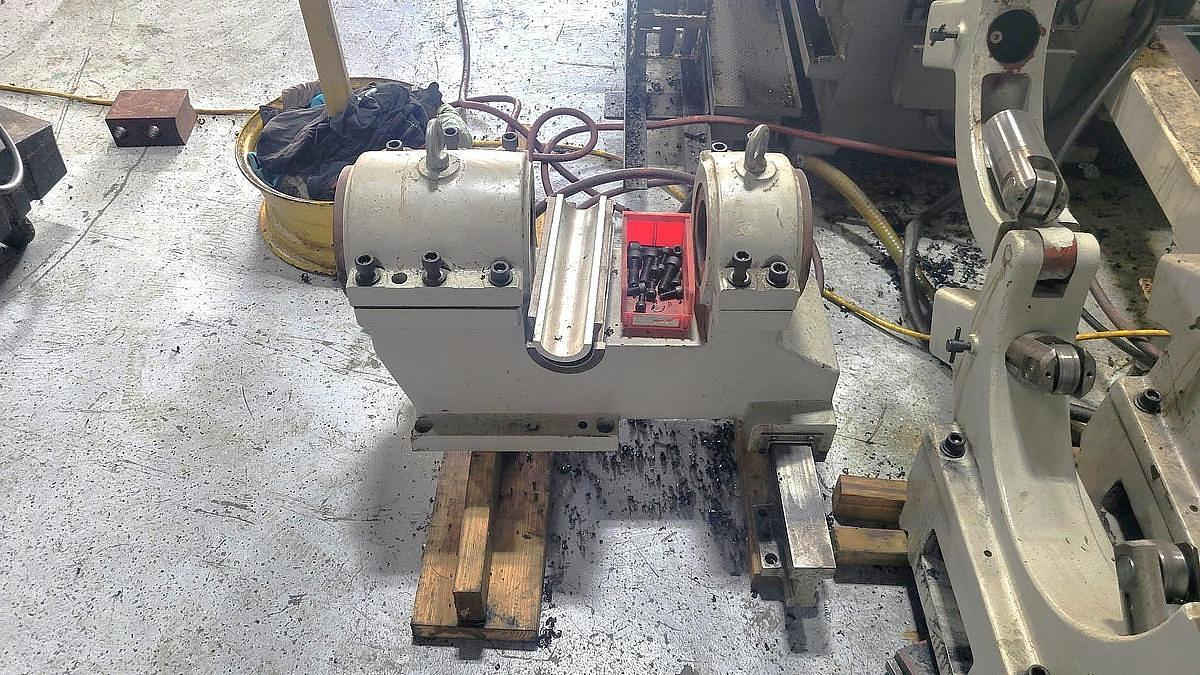

- Heavy Duty Tailstock

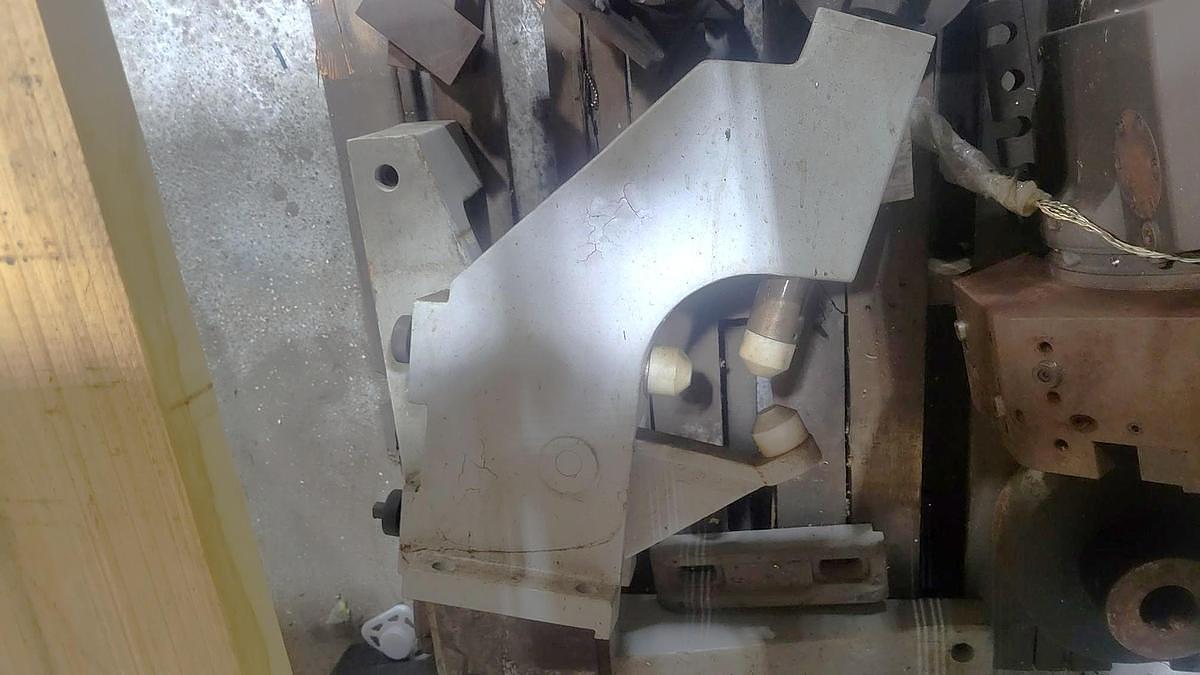

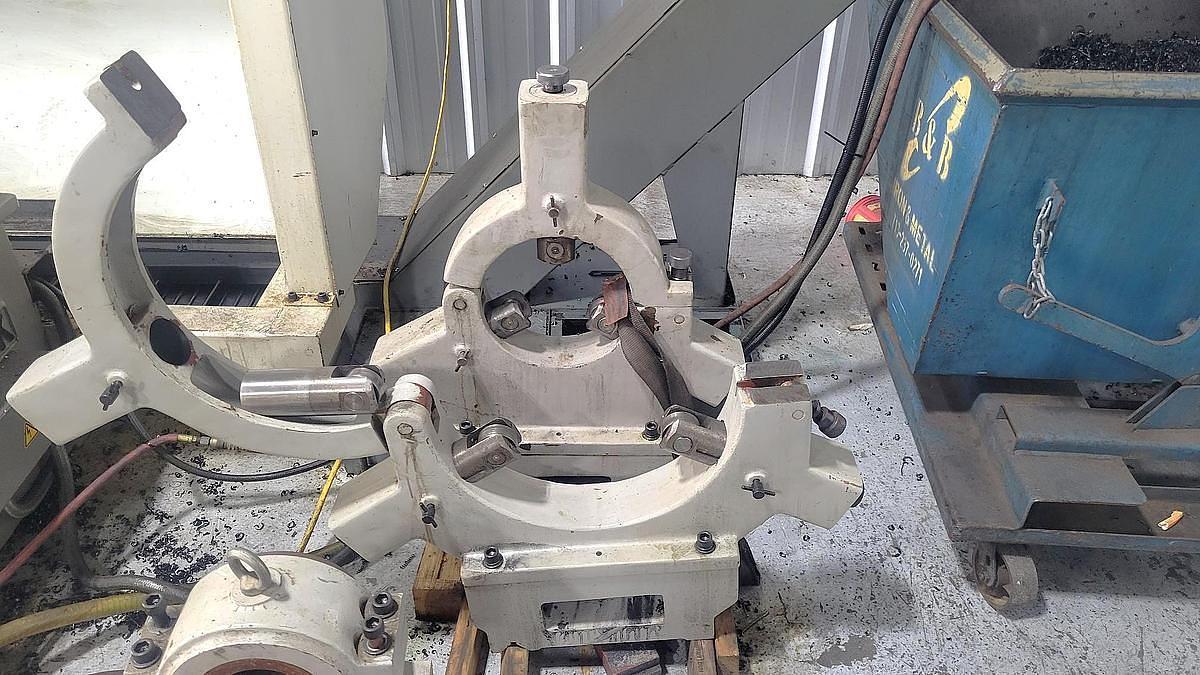

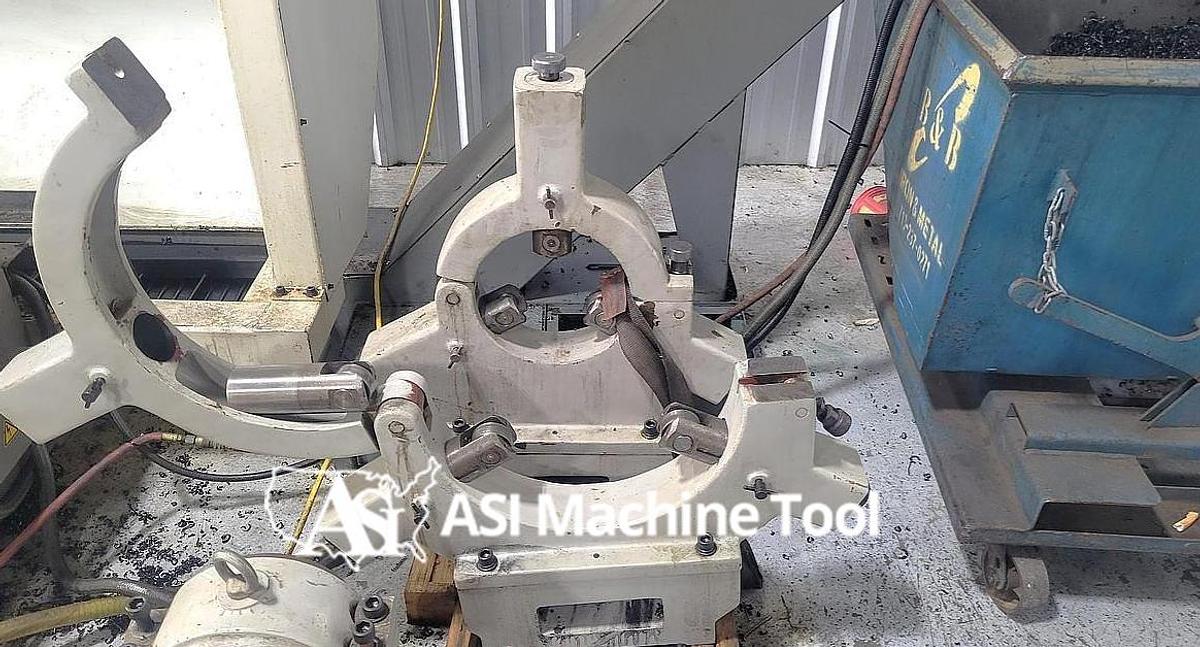

- (2) Roller Type Steady Rests
- (1) Follower Rest

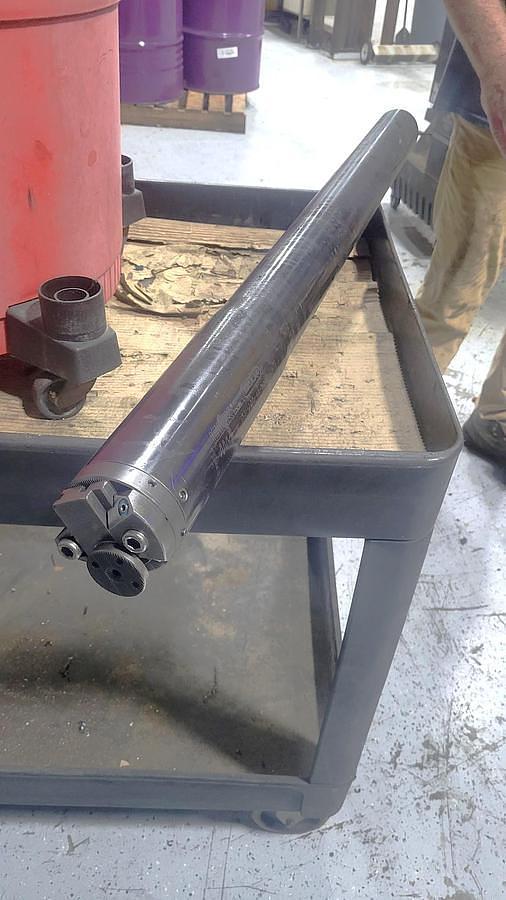

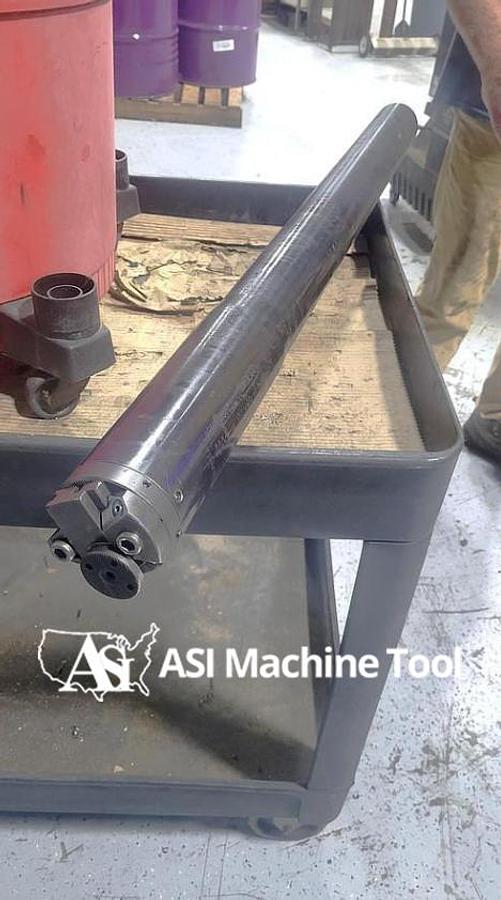

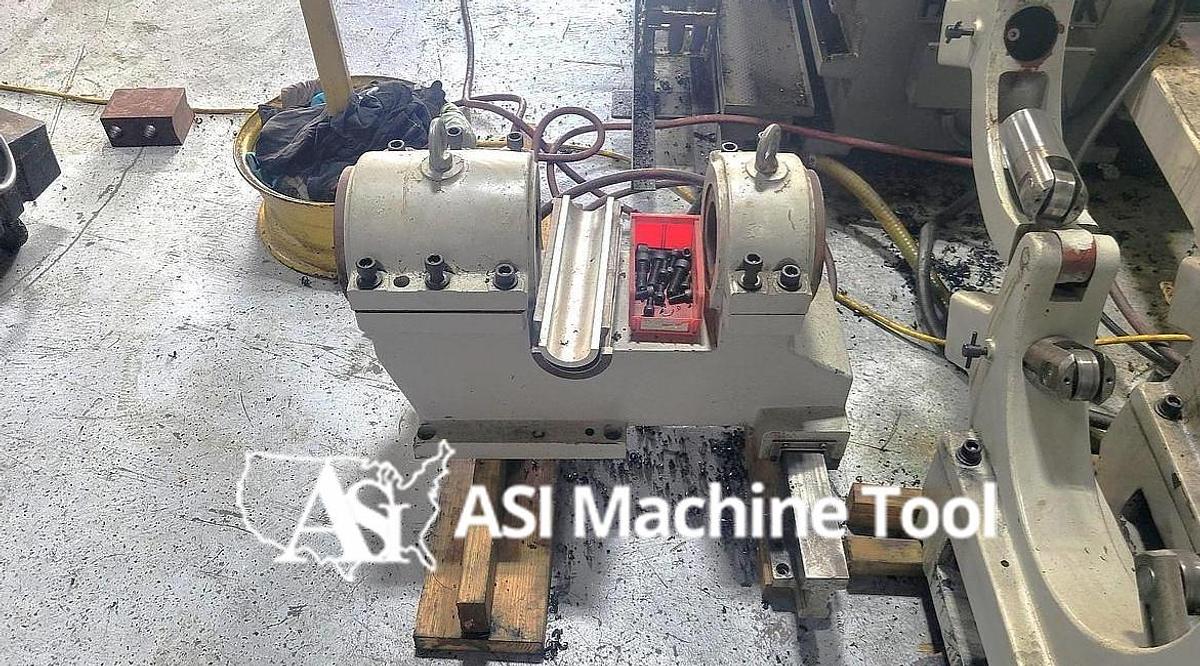

- Long Boring Bar Attachment
- Remote Jog Handle

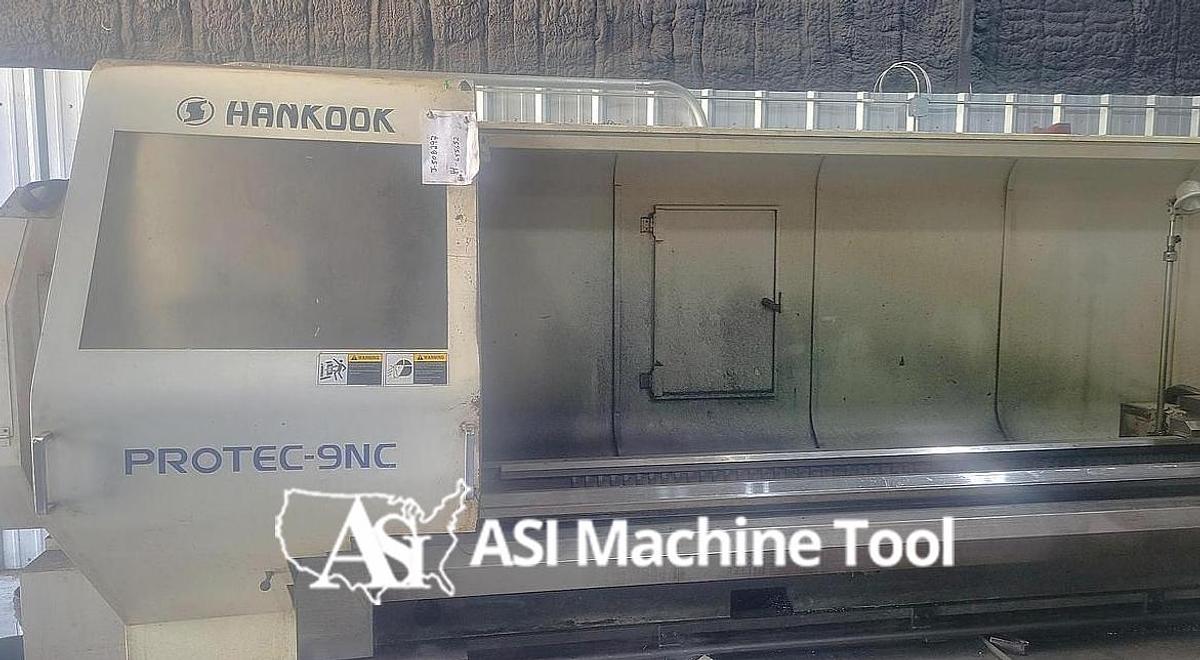

- Enclosed with Slide Doors
- Work Light
- Coolant System with Tank & Pump
- Hard Disk Interface
- RS 232 Port Interface

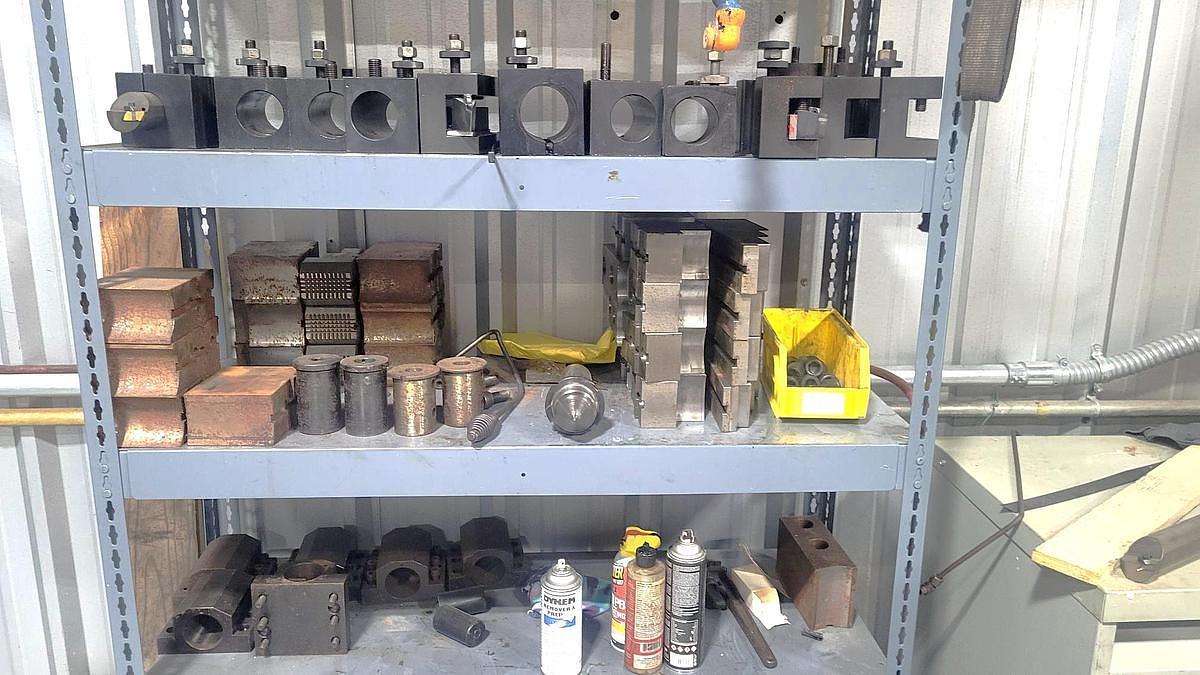

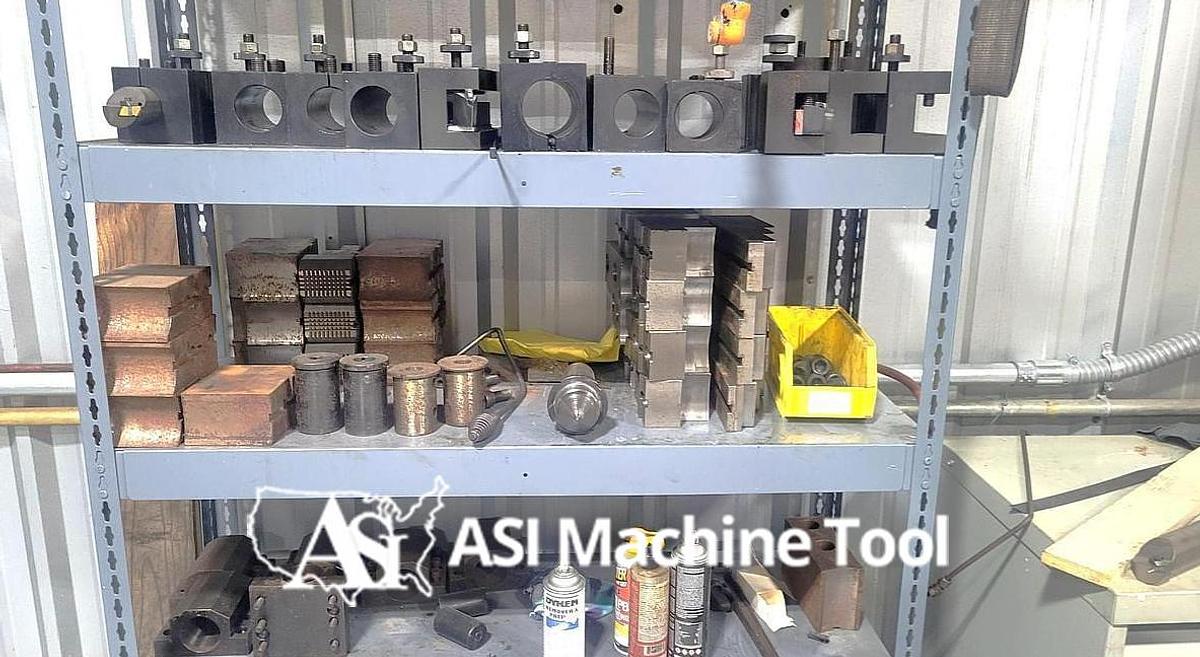

- All Available Tooling
- All Available Manuals
- **Run Time Hours 6,069**
Specifications
| Manufacturer | Hankook |
| Model | Protec 9NC/4000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | XL05152025ABL |
| Max Swing | 37.43" |
| Max Turning Diameter | 37.43" |
| Max Swing Over Cross Slide | 24.8" |
| Distance Between Centers | 157.6" |
| Spindle Bore Dia. | 10" |
| X-Axis Travel | 21.1" |
| Z-Axis Travel | 151.6" |
| Main Spindle Speed | 3 ~ 630 rpm |
| Spindle Motor | 35 HP 2-Speed |
| Turret Type | Tool Post |
