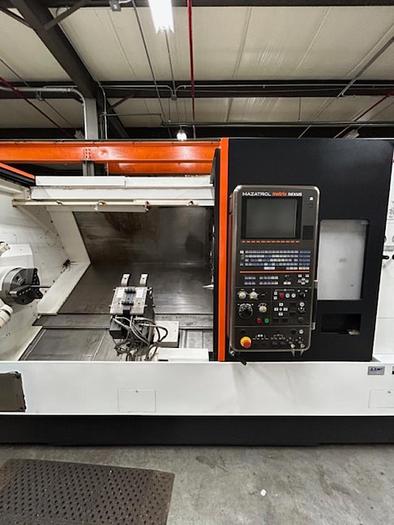

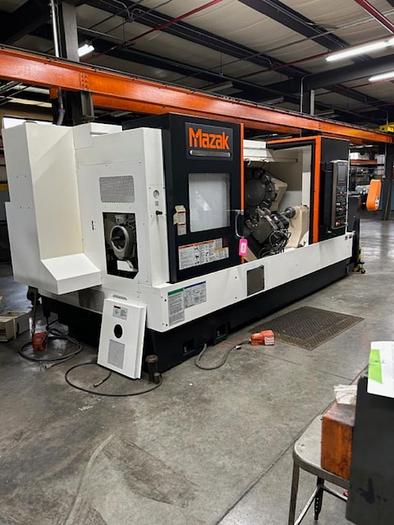

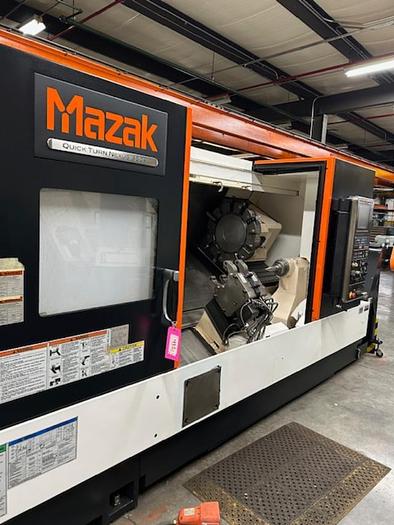

2013 Mazak QTN 350II /1500
2013 Mazak QTN 350II /1500
or
Call 859-653-9060
Description
EQUIPPED WITH:

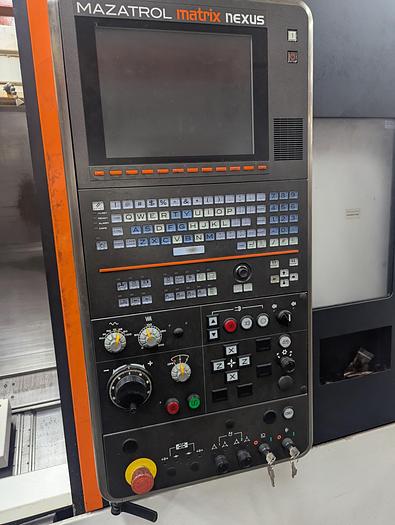

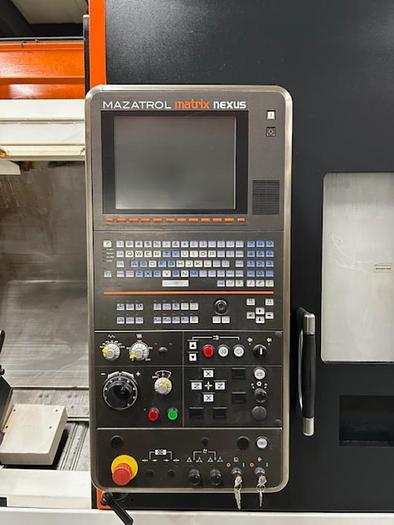

- Mazatrol Matrix Nexus
- Windows Operating System
- EIA/ISO
- Hi-Pressure Coolant 59 psi

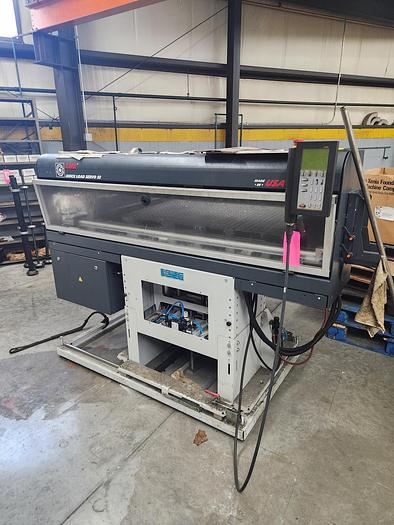

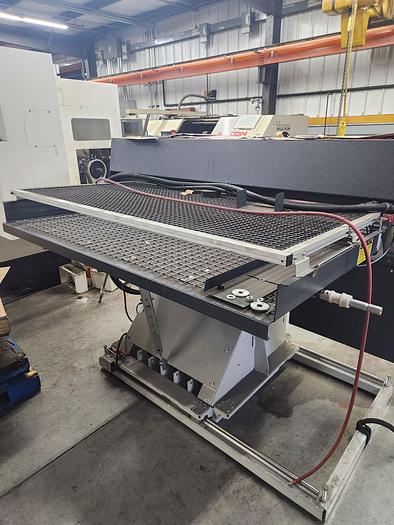

- LNS Quick Load Servo S3 Barfeeder

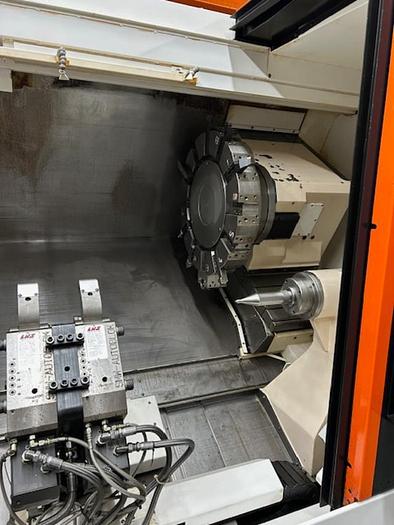

- LNS / SMW SLU-X-3 Tandem Steadyrest w / Ind Actuation
- 12″ Thru Hole Hyd. 3-Jaw Chuck with 4″ Hole

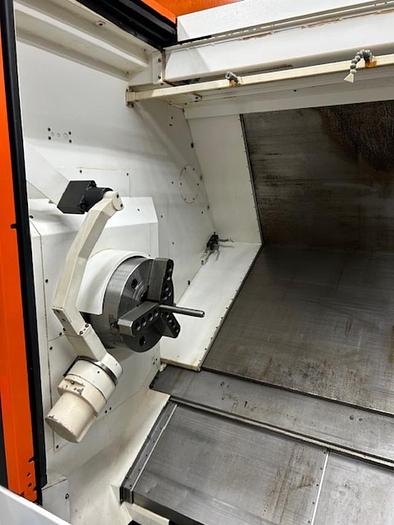

- Auto Parts Catcher
- Live Quill / Dead Center
- MultiTap Transformer

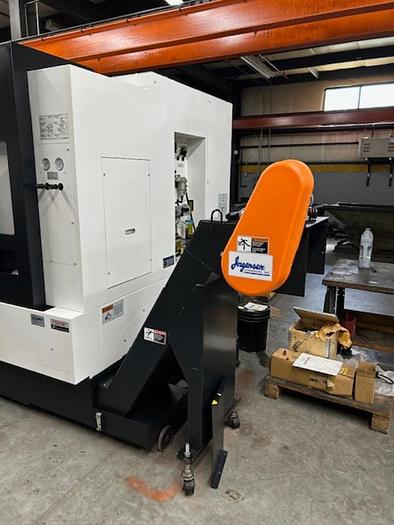

- Chip Conveyor
- ATLM
Specifications
| Manufacturer | Mazak |
| Model | QTN 350II /1500 |
| Year | 2013 |
| Condition | Used |

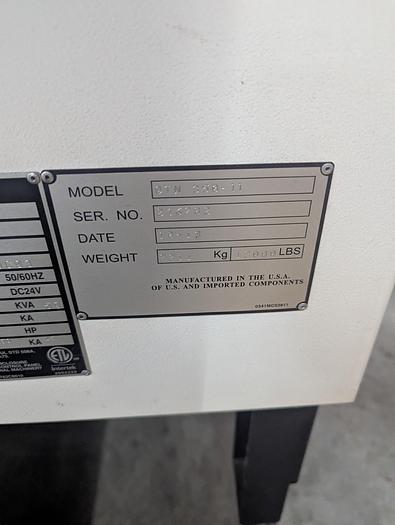

| Serial Number | 246782 |
| Stock Number | XL3112025ASI |
| Lathe type | Lathes, CNC |
| Maximum swing | 26.77" |
| Max Turning Diameter | 16.5" |
| Cutting length | 60" |
| X Axis Travel | 8.875" |
| Z Axis Travel | 63.625" |
| Spindle Nose | A2-11 |
| Spindle Bore | 4.40" |
| Bar capacity | 4.0 |
| Spindle Motor | 40 HP Cont: 30 HP |
| Speed Range | 1 Range |
| Spindle Speed | 3300 rpm |
| Tool Capacity | 12 Position, Drum Turret |
| Floor Space | 168.11"L x 83.9"W x 78.7"H |
| Machine Weight | 16975 lbs |
