Sharpe Big Spindle Bore Precision Lathe Model 3560W
Sharpe Big Spindle Bore Precision Lathe Model 3560W
Description
EQUIPPED WITH:
Spindle Bore 6 Inch, 18 Spindle Speeds, Optional Variable Speed With 4 Step Changes, Electromagnetic Spindle Brake, Machine Bed And Base Made Out Of One Piece Casting, 6 Way Lever Control Of Feed And Rapid Traverse For Carriage, Cross Slide & Compound, 240 Threads For Inch, Metric, Module And Diametral Pitch By Direct Selection, Hardened And Ground Way For Support Of Apron, Tailstock Has Hi-Low Gear For Quill Feed, Also Equipped With Inch Tang Inch And Built-In Stopper To Help In Heavy Drilling
Contact Me Today for More Information | lou@asimachinetool.com
Specifications
| Manufacturer | Sharpe |
| Model | 3560W |
| Condition | Used |

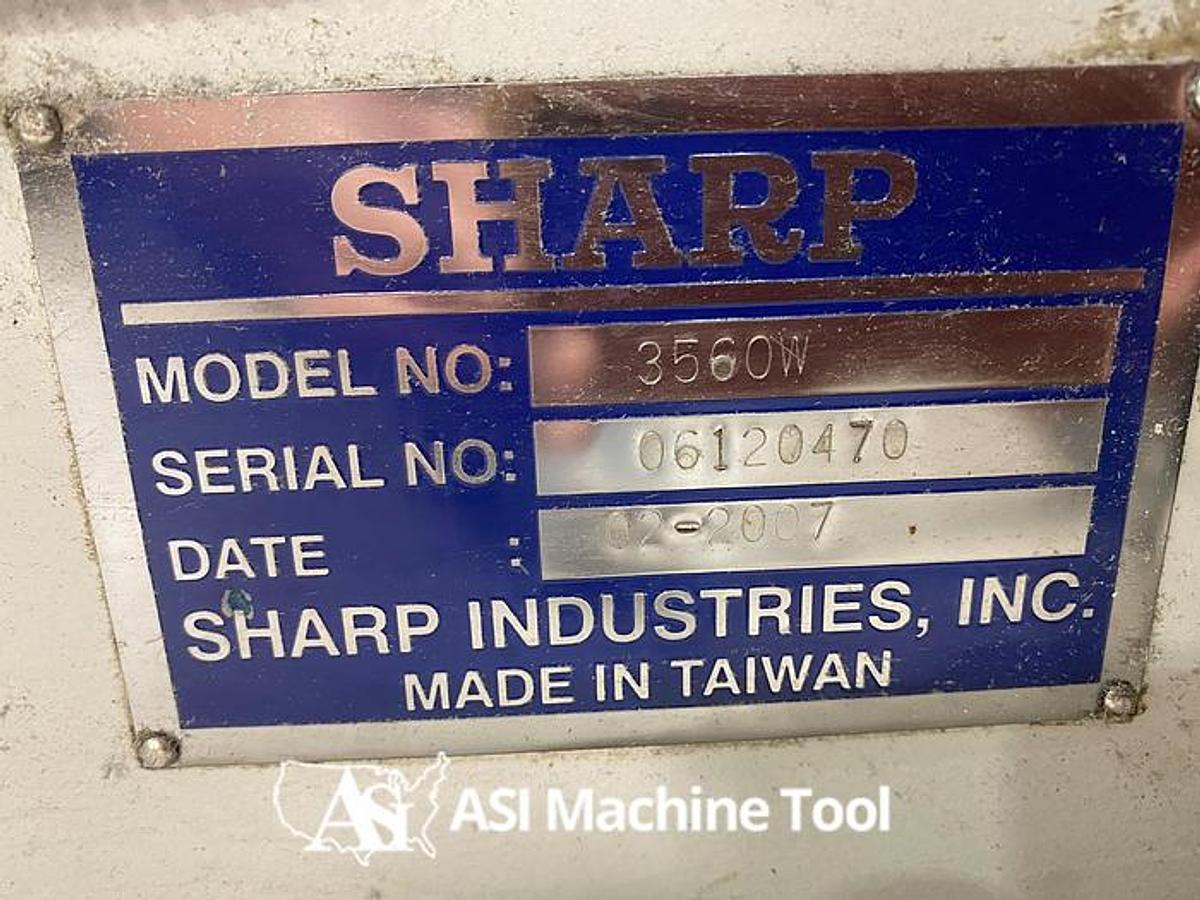

| Serial Number | 06120470 |
| Stock Number | XL11202026DF |
| Spindle Taper/Bore | A2-11 (6.02Inch) Is Standard |
| Spindle Speeds (18) | 6-750 RPM |
| Vari Spee (Optional) | 18-1,000 RPM |
| Cross Slide Travel | 26.4" |
| Compound Travel | 17.7" |
| Longitudinal Feeds | 0.0018 - 0.1" Per Revolution |
| Cross Feeds | 0.0009" - 0.05" Per Revolution |
| Long Rapid Feeds | 80" Per Min |
| Cross Rapid Feeds | 40" Per Min |
| Threads | Metric: 1-56(60), Inch: 1/2-28(60), Module: 0.25-14 (60), DP: 2-112 (60) |
| Leadscrew Pitch | 2 Teeth Per Inch |
| Quill Travel | 7.87" |
| Quill Diameter | 4.5" |
| Quill Taper | MT # 6 |
| Main Motor | 30 HP |
| Net Weight | Approx. 16,500 Lbs |
| Swing Over Bed | 35" |
| Swing Over Cross Slide | 24" |
| Swing Over Gap/Width | 53", 24" |
| Distance Between Centers | 60" |
| Bed Width | 25.5" |
