2011 Mazak QTN 450-II MY / 2000

Sold

2011 Mazak QTN 450-II MY / 2000

Description

EQUIPPED WITH:

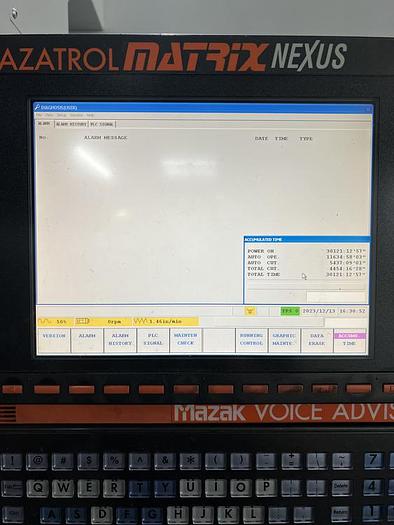

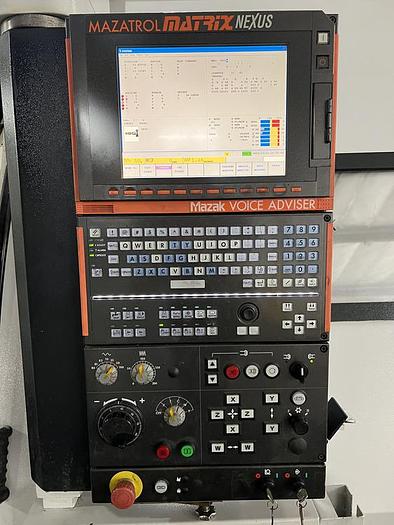

  • MAZATROL MATRIX CONTROL
  • 12.1" COLOR LCD
  • USER MACROS - 600 PAIR
  • EIA/ ISO INPUT FUNCTION - MXN-001MT
  • SEQUENCE NUMBER COMPARISON STO FUNCTION
  • ABSOLUTE POSITIONING
  • AUTOMATIC TOOL EYE
  • 213 PSI HIGH-POWER COOLANT - 10GPM
  • OPERATOR DOOR INTERLOCK
  • Y-AXIS CONTROL

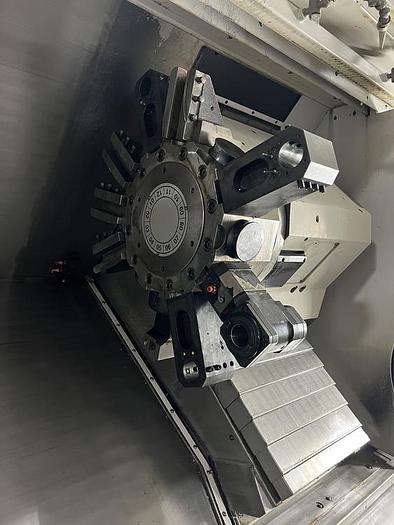

  • 12 POSITION VDI TURRET ROTARY TOOL SPEED - 4000 RPM/ 9.4KGM
  • MILLING SPINDLE SYNCHRONOUS TAPPING
  • C-AXIS 0.0001 DEGREE
  • MANUAL REARCHUCK PREP/ A2-15 NOSE

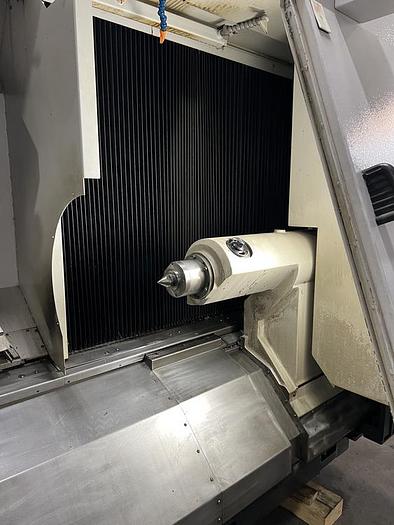

  • PROGRAMMABLE TAILSTOCK BUILT-IN LIVE CENTER
  • RELOCATION DEVICE

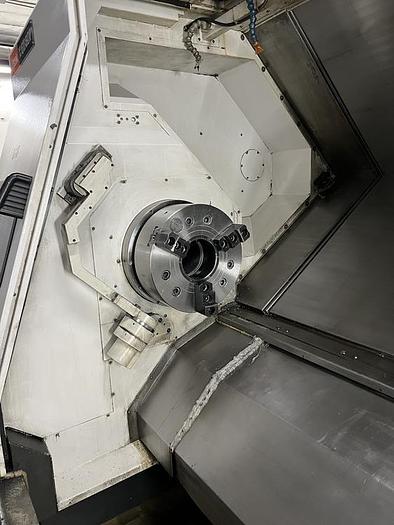

  • 18" BIG BORE THRU-HOLE CHUCK PKG - 2000 RPM (6.5" BAR CAP)
  • OVERLOAD DETECTION SYSTEM
  • HANDHELD COOLANT NOZZLE
  • MAX PROGRAM SIZE: 8MB (STANDARD - 2MB)
  • RE-THREADING
  • RENISHAW LP2 PROBE KIT FOR SHAFT WORK

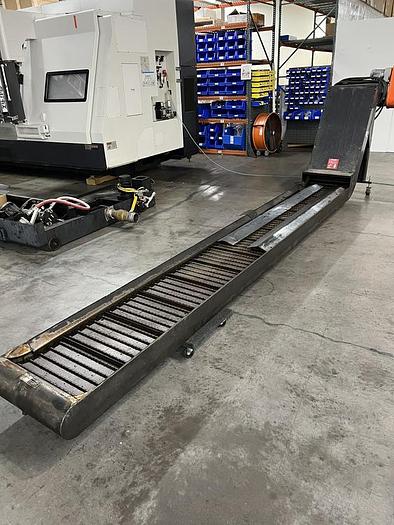

  • CHIP CONVEYOR - SIDE EXIT 2000U/ 80"------???????

Specifications

ManufacturerMazak
ModelQTN 450-II MY / 2000
Year2011
ConditionUsed
Stock NumberXL020724QM
Maximum Swing29.5"
Max Turning Diameter22.8
Max Swing Over Cross Slide22.8"
Max Cutting Length82.6"
X-Axis Travel13.375"
Z-Axis Travel82.25"
Y-Axis Travel+/- 5.9"
C-Axis Indexing0.0001
Spindle Bore Diameter7.23"
Max Bar Work6.5"
Spindle Speed2000 rpm
Spindle MotorAC 50 hp
Turret Positions12
Rotary Tool Spindle Speed4000 rpm
Rotart Tool Motor10 hp
TailstockYes
floor Space Dimensions301” x 108” f-b x 106” High including the Chip conveyor
Machine Weight42,417 LBS
