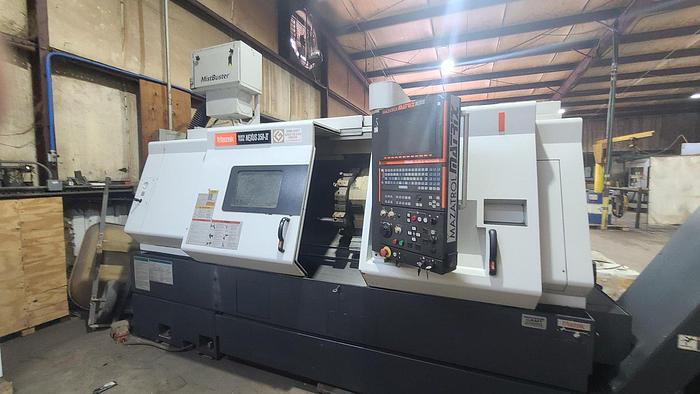

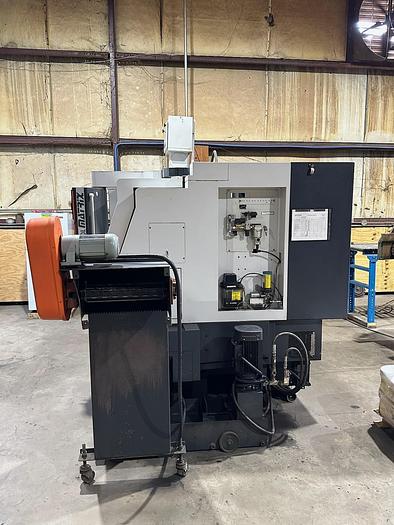

2008 Mazak QTN 350 II x 48″
2008 Mazak QTN 350 II x 48″
Description
EQUIPPED WITH: - Mazak Matrix Nexus - EIA/ISO Input Function - Operator Door Interlock - Hydraulic Pressure Interlock - ATLM - 213 psi Hi-Power Coolant - 12 Position Drum Turret, Bolt on Style Turret - Windows XP Operating System - Hinge Style Chip Conveyor - Re-Threading - Thread Start Point Compensation
Specifications
| Manufacturer | Mazak |
| Model | QTN 350 |
| Year | 2008 |
| Condition | Used |
| Stock Number | XL062223 |

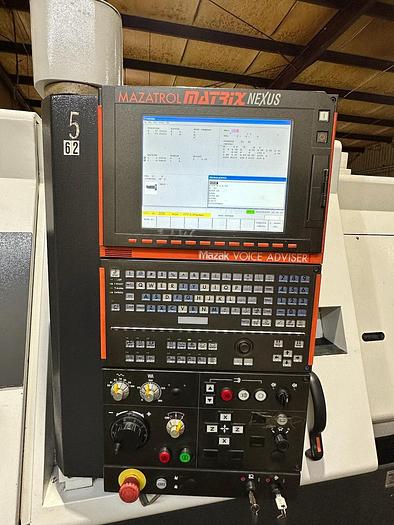

| Control type | Matrix Nexus |
| Maximum swing | 26.77 |
| Bar capacity | 3.50 |
| Chuck diameter | 10.00 |
| Lathe type | Lathes, Combination, CNC Turning Center |
| Chuck Size | 10″ Hyd |
| Maximum Swing | 26.77″ |
| Standard Machining Diameter | 10.39″ |
| Maximum Machining Diameter | 16.50″ |
| Machining Length | 46.220“ |
| Spindle Motor | (40/30 MIN/CONT.) |
| Spindle Bore | 4.4″ |
| Standard Bar Capacity | 4.0″ |
| Spindle Speed | 3,300 RPM |
| Spindle Nose | A2-11 |
| Turret Type | DRUM TURRET |
| Number of Tools | 12 |
| X-Axis Travel | 8.85″ |
| Z-Axis Travel.(Bed Length | 49.13 in” |
| Rapid Traverse Rates X-Axis | 1181 IPM |
| Rapid Traverse Rates Z-Axis | 984 IPM |
| Tailstock Center | MT. NO.5 |
| Machine Height | 78.73″ |
| Floor Space Requirement | 120″ X 80″ |
| Weight | 16,777 lbs |
