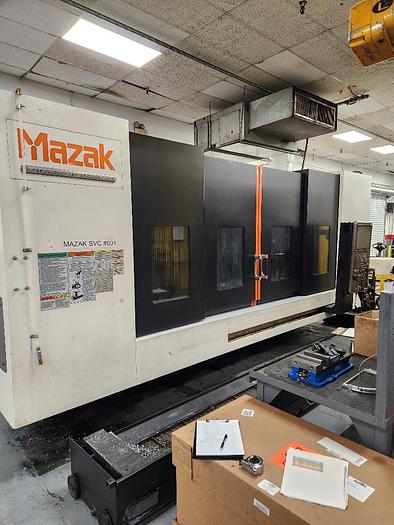

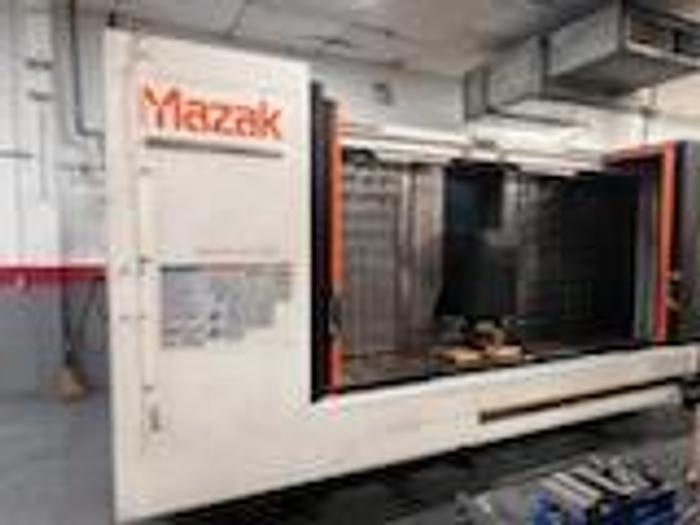

Used 2013 Mazak SVC 2000L/120 Hi-Velocity VMC SOLD
Sold
Used 2013 Mazak SVC 2000L/120 Hi-Velocity VMC SOLD
$169,500 (USD)
Description
EQUIPPED WITH:

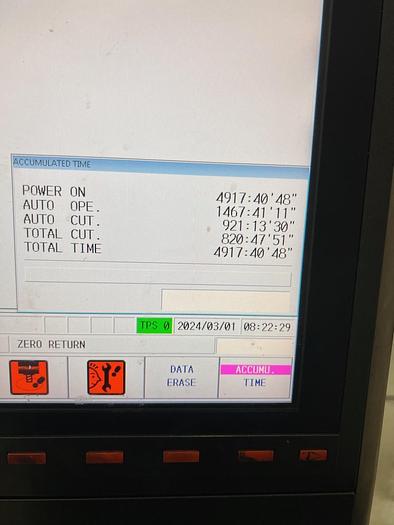

- 820 Total Cut Hours

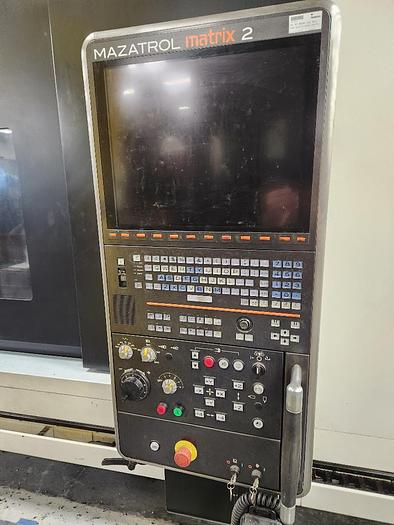

- Mazatrol Matrix 2
- Additional EIA/ISO Functions
- Chip Conveyor
- Synchronized Tapping
- Dual Chip Augers
- Inch/Metric Conversion
- Absolute Positioning Sys Y&Z Axes
- Scale Feedback Sys on X Axis
- Column 7.1″ ~ 27.2
- Auto Tool Length Measurement and Breakage Det.
- Showa Mist Collector
- Cover Coolant
- 30 Station Tool Changer
- Prep for Coolant Thru Spindle (Super Flow)
- 213 Hi-Pressure Coolant Through Spindle
- Coolers For Ballscrews X&Z Axes
- High Speed Rapids
- Preparation for MMS-B Optical OMP-60
- Relocation Device
- Manual Pulse Generator
- Windows 7 Operating Sys
- MT Connect Preparation
- Multi Tap Transformer for North American Power
Specifications
| Manufacturer | Mazak |
| Model | SVC 2000L / 120 |
| Year | 2013 |
| Condition | Used |

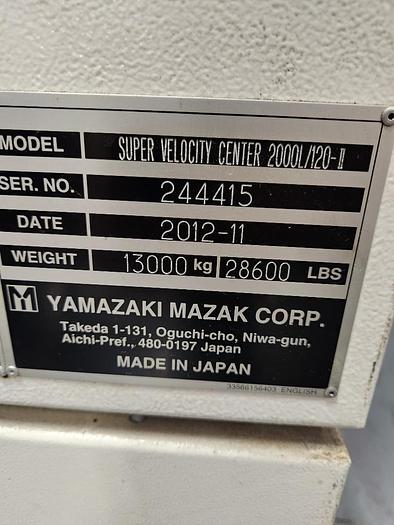

| Serial Number | 244415 |
| Stock Number | XL11202023DF |
| Control type | Matrix Nexus |
| X axis travel | 120" |
| Y axis travel | 20.8 |
| Z axis travel | 20.07" |
| Table diameter | 133.86" × 20.08" |
| No. of tools | 30 |
| Taper | Cat 40 |
| Table size | 133.86″ × 20.08″ |
| Maximum table load | 5,291 lbs |
| X-axis travel | 120″ |
| Y-axis travel | 20.08″ |
| Z-axis travel | 20.08″ |
| Spindle speed | 50~15,000 RPM |
| Gear range | 1 – Stepless |
| Spindle motor | 30 HP |
| Spindle taper | CAT 40 |
| Tool magazine capacity | 30 Station Tool Changer |
| Machine dimensions lxwxh | 235.63″ × 145.98″ x 102.36″ |
| Machine weight | 28,660 lbs. |
