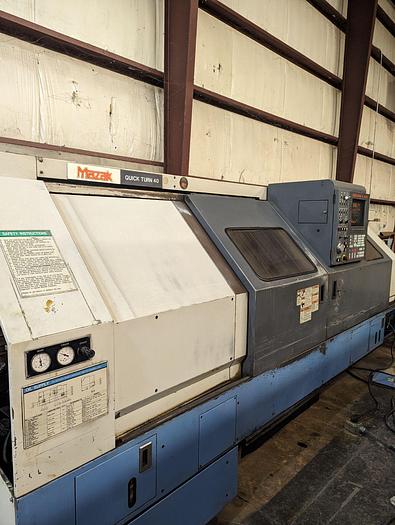

1996 Mazak QT 40 CNC Lathe
1996 Mazak QT 40 CNC Lathe
Description

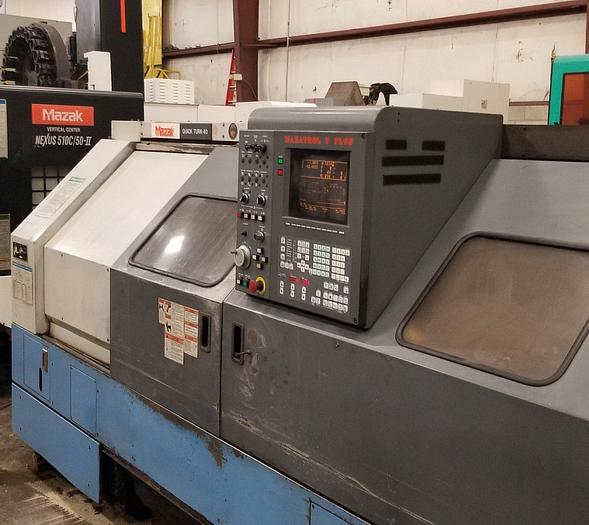

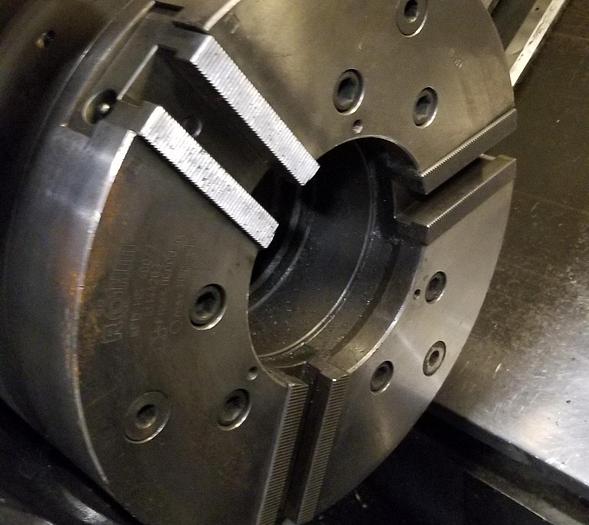

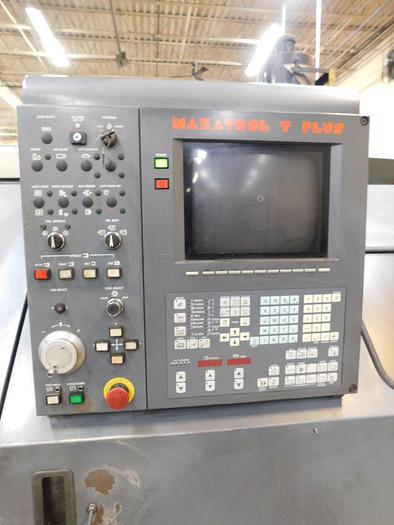

EQUIPPED WITH: MAZATROL T Plus Rohm KFD-HS 144263 Power Chuck AUTOMATIC TOOL LENGTH MEASUREMENT CHIP CONVEYOR
Specifications
| Manufacturer | Mazak |
| Condition | Used |
| Stock Number | XJ110619BH |
| Control type | Mazatrol |
| Maximum swing | 20.00 |
| Bar capacity | 2.75 |
| Chuck diameter | 12.00 |
| Lathe type | Lathes, Combination, CNC Turning Center |
| Standard Chuck Diameter | 15″ |
| Standard Bar Capacity | 2.75″ |
| Maximum Swing | 20″ |
| Maximum Cutting Diameter | 15.75″ |
| Maximum Cutting Length | 59.3″ |
| Nose | A1‑11 |
| Bore | 4.09″ |
| Speed | 30 ‑ 2500 RPM |
| Number of Speed Ranges | 3 |
| Horsepower (Cont./30 Min.) | 30/40 (A.C.) |
| Torque | 1,063 ft./lbs. |

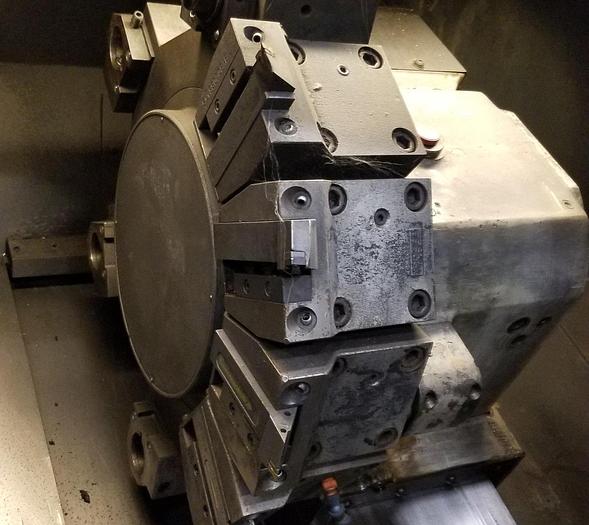

| Type of Turret | Dodecagonal Drum |
| Number of Tools | 24 |
| X‑Axis | 11″ |
| Z‑Axis | 61.3″ |

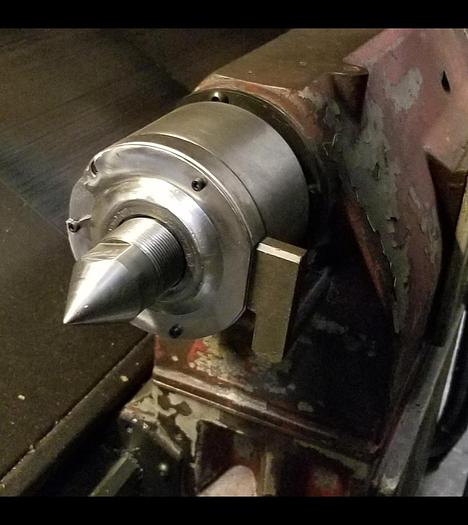

| Tailstock Spindle Center | MT #5 |
| Tailstock Spindle Diameter | 3.94″ |
| Tailstock Spindle Travel | 5.1″ |
| Tailstock Body Travel | 54.5″ |
| Tailstock Floor Space | (W x L) - 81″ x 165.5″ |
| Tailstock Machine Height | 74.2″ |
| Tailstock Total Power Required (Machine Only) | 63.3 KVA |
| Tailstock Machine Total Weight | 16,280 lbs |
