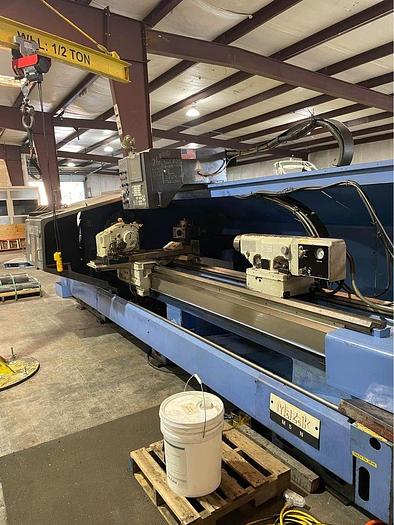

Used 2000 Mazak M5N /3000 CNC Lathe with 0.004 from TS to Headstock
Used 2000 Mazak M5N /3000 CNC Lathe with 0.004 from TS to Headstock
Description

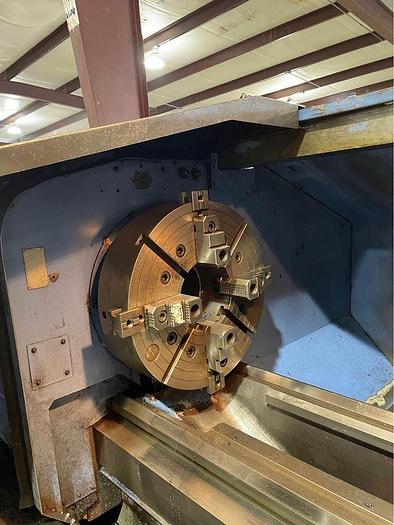

EQUIPPED WITH: Mazatrol 640T Fusion 10.4″ Color LCD 21″ 4-Jaw Manual, Front and Rear EIA/ISO Option Package Re-Threading Thread Point Comp Multitap Transformer Runout is only 0.004 from Headstock to Tailstock
Machine was rebuilt in 2006
Specifications
| Manufacturer | Mazak |
| Model | M5 |
| Year | 2000 |
| Condition | Used |
| Stock Number | XL62723MW |

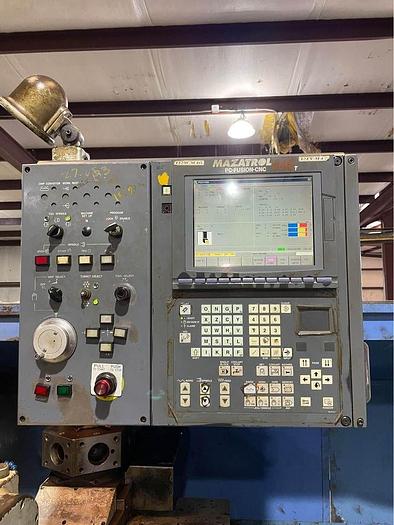

| Control type | Mazatrol 640T |
| Maximum Swing | 24″ |
| Maximum Swing Over Cross Slide | 13″ |
| Maximum Cutting Diameter | 22.8″ |
| Center Distance | 122″ |
| Spindle Nose | A2-15″ |
| Spindle Bore | 7.1″ |
| Spindle Speed | 1000 RPM |
| Number of Speed Ranges | 3 |
| Spindle Horsepower (Cont/30 Min) | 25/30 HP (AC) |

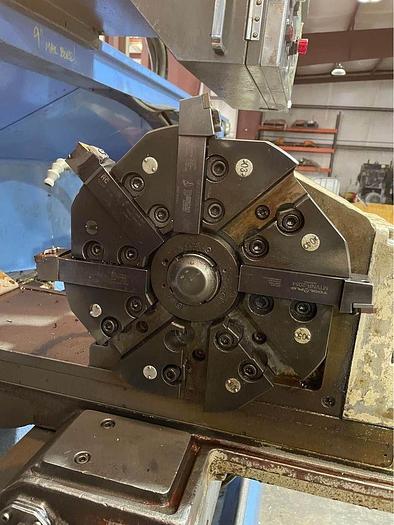

| Type of Turret | Front - Vertical Disk |
| Number of Tools Front | 8 |
| Rear | 6 |
| X-Axis | 21.25″ |
| Z-Axis | 121″ |
| Tailstock Spindle Center | M.T. #5 |
| Tailstock Spindle Diameter | 3.9″ |
| Tailstock Spindle Travel | 5.12″ |
| Floor Space | (W x L) - 119″ x 221″ |
| Machine Height | 83″ |
| Total Power Required (Machine Only) | 43 KVA |
| Machine Weight | 14,300 lbs. |
